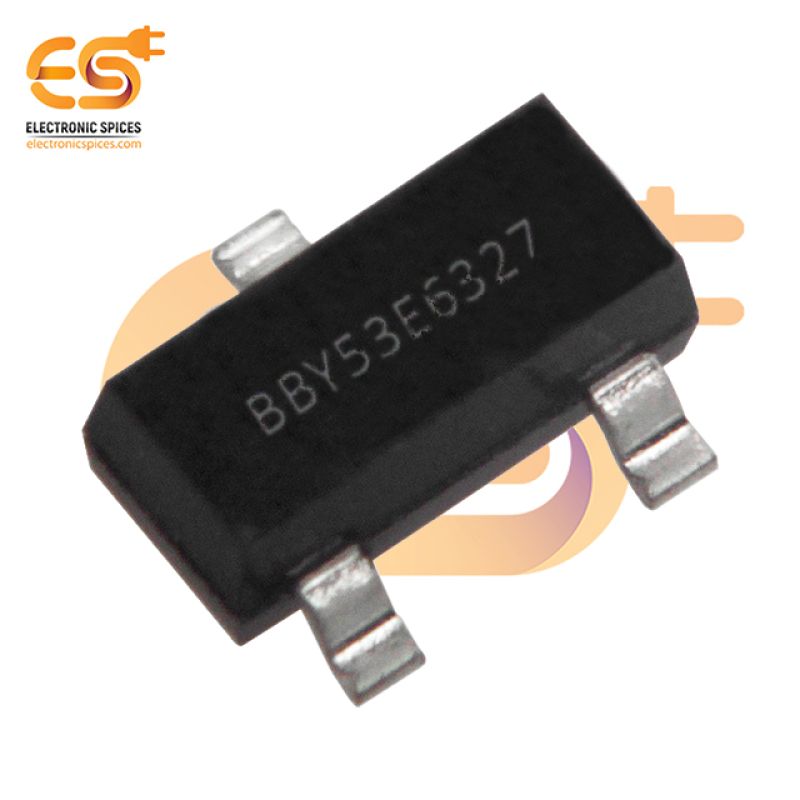

BBY53E6327 6V Surface Mount Varactors 1-Pair Common Cathode SOT-23

BBY53E6327 6V Surface Mount Varactors 1-Pair Common Cathode SOT-23

The BBY53E6327 is a pair of surface-mount varactor diodes designed for use in RF and analog circuit applications, specifically for tuning and frequency modulation. With a common cathode configuration, this pair of diodes is ideal for use in frequency synthesizers, voltage-controlled oscillators (VCOs), and other tunable RF components. The BBY53E6327 is designed to operate with a reverse voltage of 6V, and its compact SOT-23 package makes it suitable for space-constrained PCB designs. Varactors, also known as tuning diodes, are semiconductor devices that behave like capacitors when reverse biased, with their capacitance varying in response to changes in the reverse voltage. This characteristic makes the BBY53E6327 ideal for applications where precise control over frequency or impedance is required. The SOT-23 package allows for efficient integration into compact designs, offering reduced footprint without compromising performance.

Applications:-

• Frequency synthesizers.
• Voltage-controlled oscillators (VCOs).
• RF signal tuning.
• Communication systems for frequency modulation.

Features:-

• High precision and stability for accurate frequency control in RF circuits.
• Designed for operation at 6V reverse bias.
• Surface-mount varactor diodes with common cathode configuration.
• Compact SOT-23 surface-mount package, ideal for compact designs.
