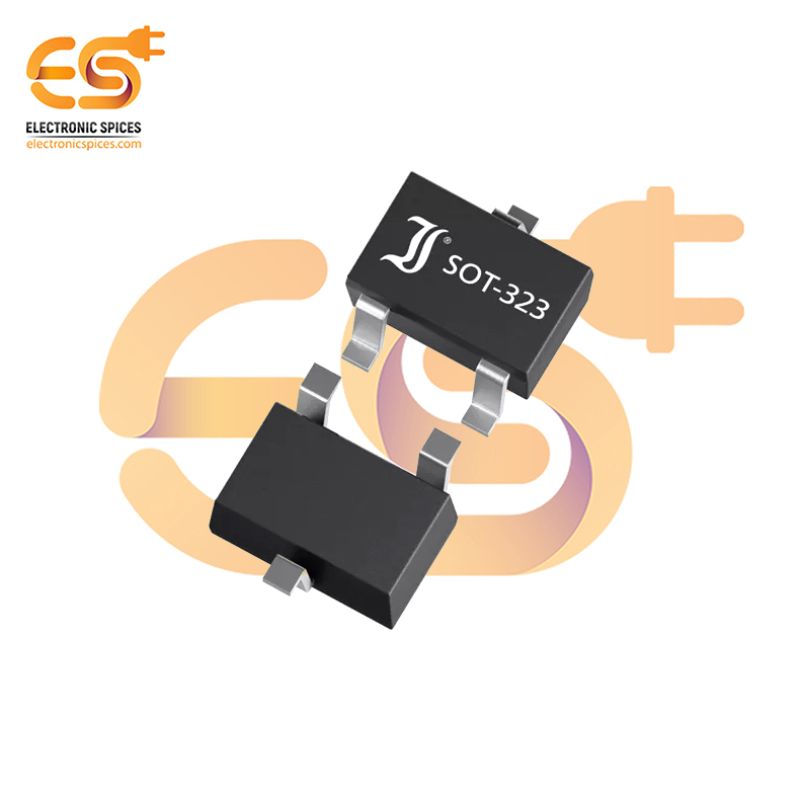

BC807-40W 45V 500mA 80MHz 200mW Surface Mount PNP Bipolar Transistor SOT-323
Specification:-
- Package: SC-70 / SOT-323
- Mounting Style: SMD/SMT
- Transistor Polarity: PNP
- Maximum DC Collector Current: 500 mA
- Collector- Emitter Voltage VCEO Max: 45 V
- Collector- Base Voltage VCBO: 50 V
- Emitter- Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: 700 mV
- Pd - Power Dissipation: 200 mW
- Gain Bandwidth Product fT: 80 MHz
SKU: ZS8410A
BC807-40W 45V 500mA 80MHz 200mW Surface Mount PNP Bipolar Transistor SOT-323
The BC807-40W is a surface-mount PNP bipolar transistor designed for general-purpose amplification and switching applications. With a maximum collector-emitter voltage of 45V and a collector current of up to 500mA, it is well-suited for low-power electronic circuits. Its power dissipation capability of 200mW and high transition frequency of 80MHz ensure reliable performance in high-speed signal processing and low-voltage applications. Packaged in the compact SOT-323 form factor, the BC807-40W is ideal for modern, space-constrained designs. It features a high current gain, making it efficient for use in audio amplifiers, signal processing circuits, and small motor control.
Features:-
- High gain for efficient amplification.
- Low saturation voltage for efficient operation.
- Provides good amplification with high current gain.
- suitable for high-speed applications.
- Ideal for space-constrained designs requiring high reliability.
