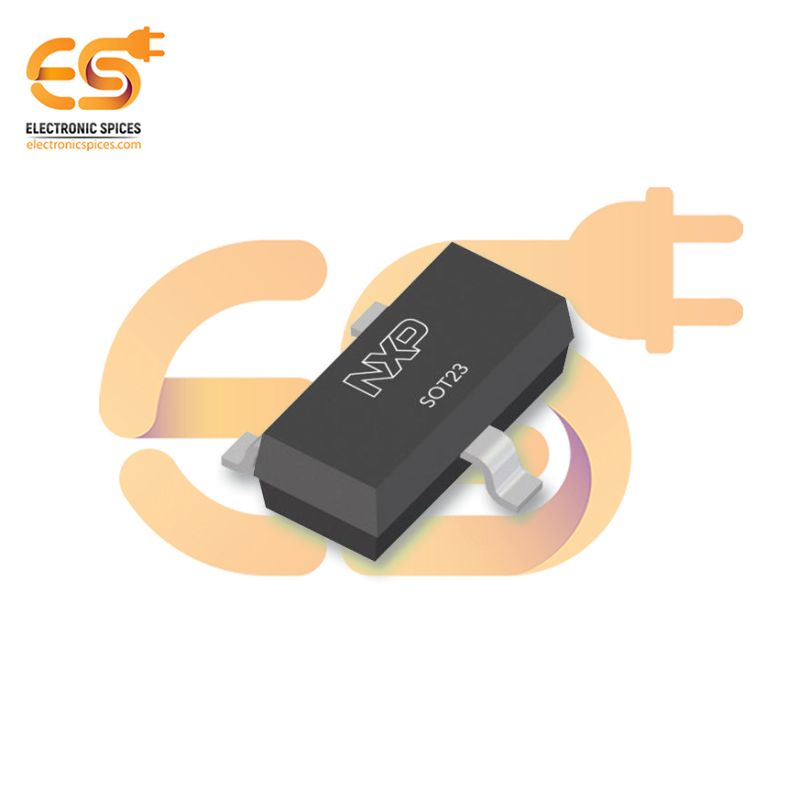

BCW61D 80V 32V 100mA 100MHz 250mW Surface Mount PNP Bipolar Transistor SOT-23
Specification:-
- Package: SOT-23-3 / TO-236-3 / SC-59
- Mounting Style: SMD/SMT
- Transistor Polarity: PNP
- Maximum DC Collector Current: 100 mA
- Collector- Emitter Voltage VCEO Max: 32 V
- Collector- Base Voltage VCBO: 32 V
- Emitter- Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: 550 mV
- Pd - Power Dissipation: 250 mW
- Gain Bandwidth Product fT: 100 MHz
SKU: ZT8410A
BCW61D 80V 32V 100mA 100MHz 250mW Surface Mount PNP Bipolar Transistor SOT-23
The BCW61D is a PNP surface-mount bipolar transistor designed for general-purpose switching and amplification tasks in low-power electronic circuits. It supports a maximum collector-emitter voltage of 80V, a collector current of up to 100mA, and a power dissipation of 250mW, making it suitable for a wide range of low- to medium-voltage applications. With a high transition frequency of 100MHz, this transistor is also ideal for high-speed signal amplification and switching. Packaged in the SOT-23 form factor, the BCW61D is compact and optimized for modern surface-mount designs. Its high current gain ensures efficient operation in small-signal applications. Typical applications include signal amplification, low-power switching, and driver stages in audio, communication, and control systems.
Features:-
- High gain for efficient amplification.
- Low saturation voltage for efficient operation.
- Provides good amplification with high current gain.
- suitable for high-speed applications.
- Ideal for space-constrained designs requiring high reliability.
