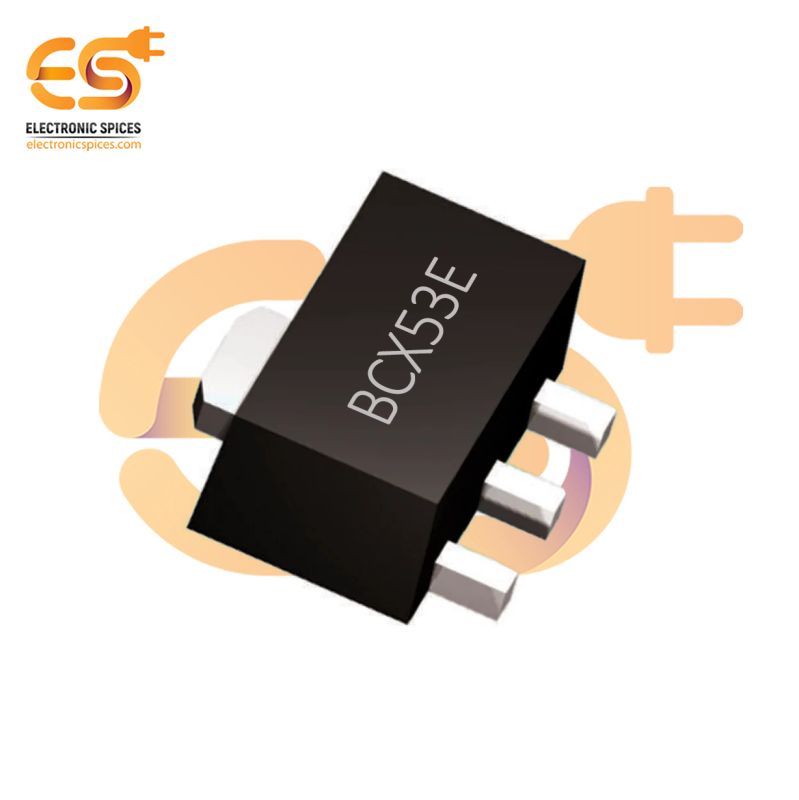

BCX53E 80V 1A 125MHz 2W Surface Mount Bipolar Transistor SOT-89
Specification:-
- Package: TO-243AA / SOT-89
- Maximum DC Collector Current: 1 A
- Collector- Emitter Voltage VCEO Max: 80 V
- Collector- Base Voltage VCBO: 100 V
- Emitter- Base Voltage VEBO: 5 V
- Collector-Emitter Saturation Voltage: 500 mV
- Pd - Power Dissipation: 1.3 W
- Gain Bandwidth Product fT: 125 MHz
SKU: LQ8410A
BCX53E 80V 1A 125MHz 2W Surface Mount Bipolar Transistor SOT-89
The BCX53E is a high-performance, NPN surface-mount bipolar transistor designed for general-purpose switching and amplification applications. It operates with a maximum collector-emitter voltage of 80V, a collector current of up to 1A, and features a high power dissipation rating of 2W, making it suitable for medium-power electronic circuits. With a transition frequency of 125 MHz, the transistor is ideal for high-speed switching and RF signal amplification. Packaged in the SOT-89 surface-mount form factor, the BCX53E offers a compact, thermally efficient solution for space-constrained designs. Its robust construction and low saturation voltage ensure efficient performance, even in demanding operating conditions. Typical applications include motor drivers, signal processing, audio amplification, and voltage regulation circuits.
Features:-
- Low saturation voltage for efficient operation.
- Provides good amplification with high current gain.
- 125 MHz for high-speed switching and signal amplification.
- SOT-89, compact and thermally efficient for surface-mount applications.
