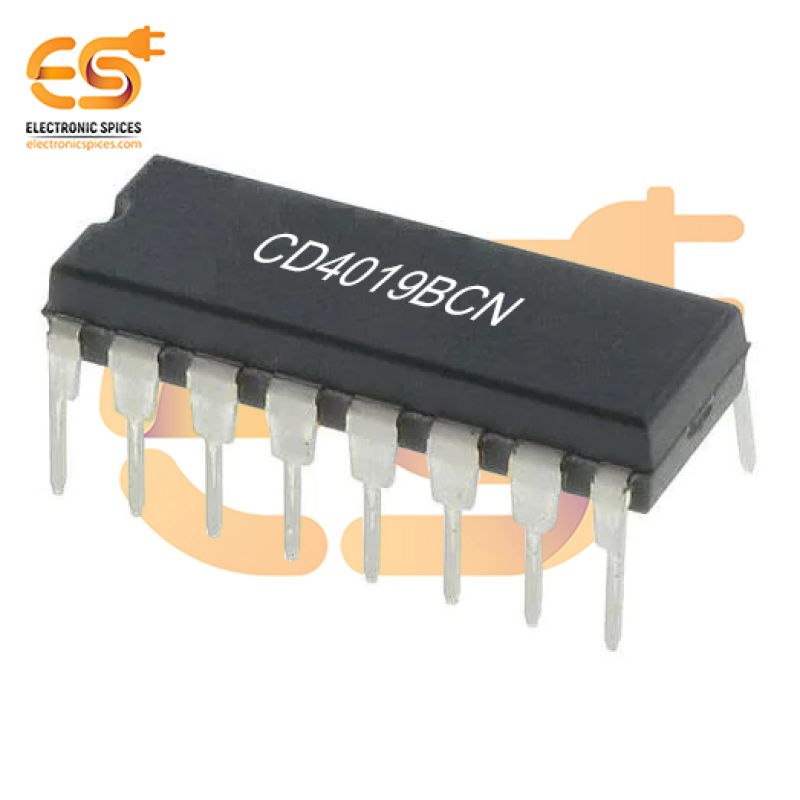

CD4019BCN AND/OR Gate Configurable 4 Circuit 2, 2-Input 16-PDIP
Specification:-
- Package/Case: PDIP16 (0.300", 7.62mm)
- Number of Output Lines: 1 Output
- Low Level Output Current: 4.2 mA
- High Level Output Current: - 1.8 mA
- Propagation Delay Time: 300 ns
- Supply Voltage - Min: 3 V
- Supply Voltage - Max: 15 V
SKU: TV8541A
CD4019BCN AND/OR Gate Configurable 4 Circuit 2, 2-Input 16-PDIP
The CD4019BCN is a versatile and configurable AND/OR gate IC, offering a flexible logic solution for a wide range of digital circuits. This IC features 4 independent gates, each of which can be configured as either an AND or an OR gate, based on the specific requirements of the circuit. The device provides a choice of two input channels per gate, allowing for custom logical operations to be implemented, making it highly adaptable for various applications. Housed in a 16-pin PDIP (Plastic Dual In-Line Package) form factor, the CD4019BCN is designed for easy integration into both prototype and production-level circuit designs. It operates with a wide voltage range, typically from 3V to 18V, which allows compatibility with a wide range of logic levels and systems. The IC is part of the CD4000 series, known for its reliable performance in harsh environments, providing high noise immunity and low power consumption. The CD4019BCN is ideal for use in applications requiring flexible logic gates, such as signal processing, control systems, and various forms of logic-based decision-making in embedded systems.
Features:-
- Wide Voltage Range
- High-Speed Operation
- Low Power Consumption
- Standard 16-Pin PDIP Package
