LOGIC IC

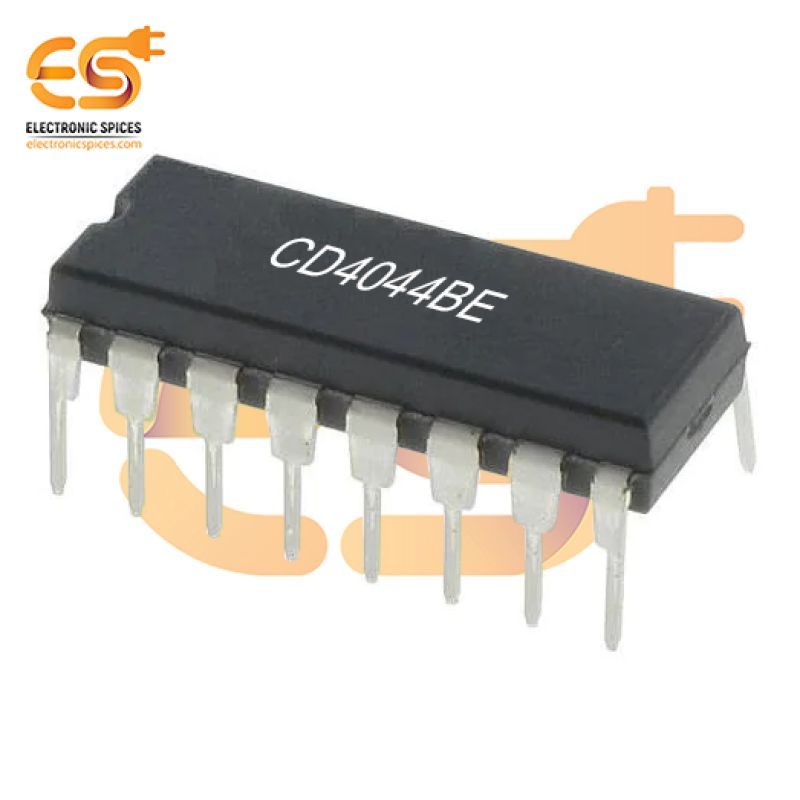

CD4044BE S-R Latch 4 Channel 1:1 IC Tri-StateLogic IC 16-PDIP

Specification:-

  • Package: PDIP16 (0.300", 7.62mm)
  • Quiescent Current: 20 uA
  • Low Level Output Current: 32 mA
  • High Level Output Current: - 4.2 mA
  • Supply Voltage - Min: 3 V
  • Supply Voltage - Max: 18 V
Available in Pack Of:

SKU: FG8542A

MRP Rs. 705.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

CD4044BE S-R Latch 4 Channel 1:1 IC Tri-StateLogic IC 16-PDIP

The CD4044BE is a 4-channel S-R (Set-Reset) latch logic IC that provides versatile control and memory functions for digital systems. This IC features a tri-state output configuration, allowing the outputs to be in high, low, or high-impedance states, making it highly suitable for bus-oriented applications and complex circuit designs. Encased in a 16-pin PDIP (Plastic Dual-Inline Package), it is optimized for through-hole mounting and is compatible with CMOS logic levels. Each of the four latches in the CD4044BE operates independently, with 1:1 input-to-output correspondence, enabling flexible data storage and control functionality. It supports a wide range of supply voltages, from 3V to 15V, ensuring compatibility with both low-power and standard-voltage systems. The IC offers low power dissipation and high noise immunity, making it reliable for use in demanding digital environments.

Features:-

  • High, low, or high-impedance states for flexible control.
  • deal for energy-efficient applications.
  • High noise margin for robust performance.
  • Package: 16-PDIP, through-hole mounting.

Applications:-

  • Data latching and storage.
  • Control signal synchronization.
  • Digital memory management.
  • Bus-oriented logic systems.
