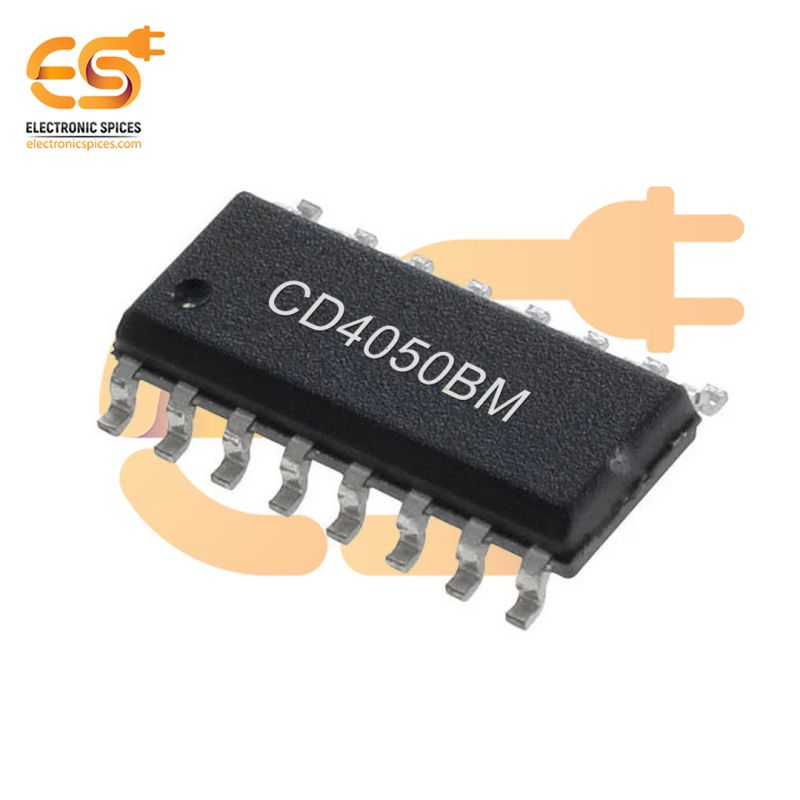

CD4050BM Buffer Non-Inverting Logic IC 6-Element 1 Bit per Element Push-Pull Output 16-SOIC

CD4050BM Buffer Non-Inverting Logic IC 6-Element 1 Bit per Element Push-Pull Output 16-SOIC

The CD4050BM is a non-inverting buffer IC designed for logic level shifting and signal buffering in digital circuits. This IC features six independent buffer elements, each capable of handling one bit of data per element. The IC provides a push-pull output, which allows for both sourcing and sinking current, ensuring efficient and reliable signal transmission. With its 16-pin SOIC (Small Outline Integrated Circuit) package, the CD4050BM is designed for surface-mount applications and offers a compact solution for high-density circuit designs. The CD4050BM operates over a wide voltage range (3V to 15V), making it compatible with various logic families. It is ideal for situations where signals need to be buffered or level-shifted between different logic voltage levels, such as interfacing between TTL (Transistor-Transistor Logic) and CMOS (Complementary Metal-Oxide-Semiconductor) circuits. Its low power consumption and high-speed performance make it suitable for applications in communication systems, signal processing, and microcontroller interfacing. The device's robust construction and efficient output make it perfect for use in a variety of digital systems, ensuring clean and stable signal propagation.

Features:-

• Non-inverting buffer with push-pull output
• 6 independent 1-bit buffer elements
• Energy-efficient for use in low-power systems
• Push-pull configuration for efficient current sourcing and sinking
