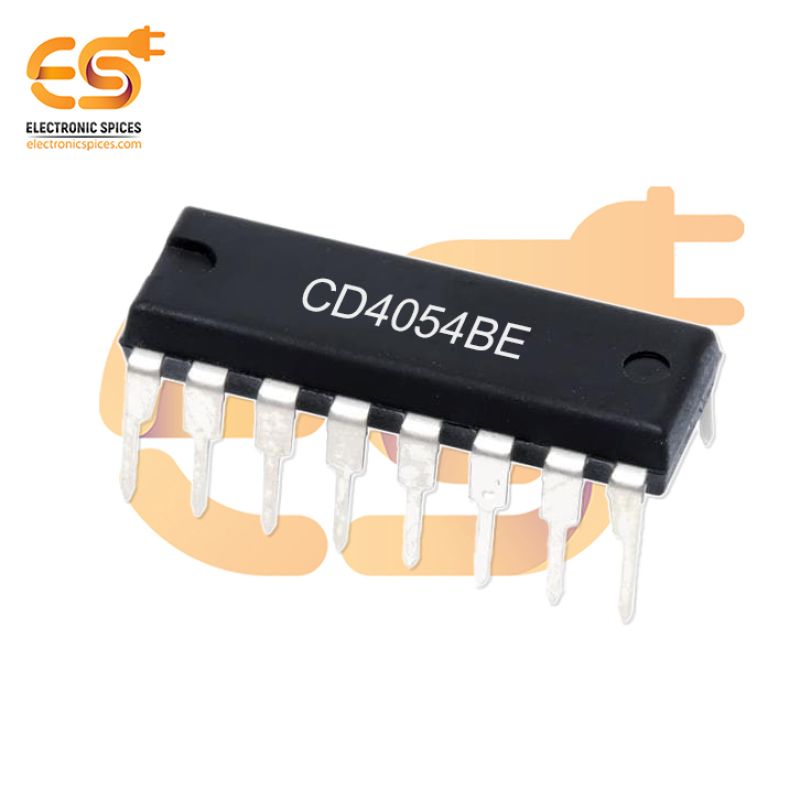

CD4054BE Driver IC 4 Segment LCD Display 16-PDIP

CD4054BE Driver IC 4 Segment LCD Display 16-PDIP

The CD4054BE is a driver IC designed specifically for driving 4-segment LCD displays in digital systems. It operates as an interface between logic-level signals and the low-voltage, high-impedance requirements of liquid crystal displays (LCDs). This IC supports up to 4 independent segments and is equipped with circuitry to handle multiplexed display operations, ensuring efficient and clear signal transmission to the LCD segments. The CD4054BE is part of the CMOS family, offering low power consumption, high noise immunity, and wide voltage compatibility, operating within a range of 3V to 18V. It is housed in a 16-pin PDIP (Plastic Dual In-line Package), making it suitable for through-hole mounting and easy integration into PCB designs. Its capability to directly drive LCD segments eliminates the need for additional driver circuits, simplifying display system design. Common applications include digital clocks, calculators, and other devices requiring low-power, compact LCD displays.

Features:-

• Reliable operation in noisy environments
• Supports multiplexed LCD displays
• 16-pin PDIP for through-hole mounting
• Designed for low-voltage, high-impedance LCD segments
