LOGIC IC

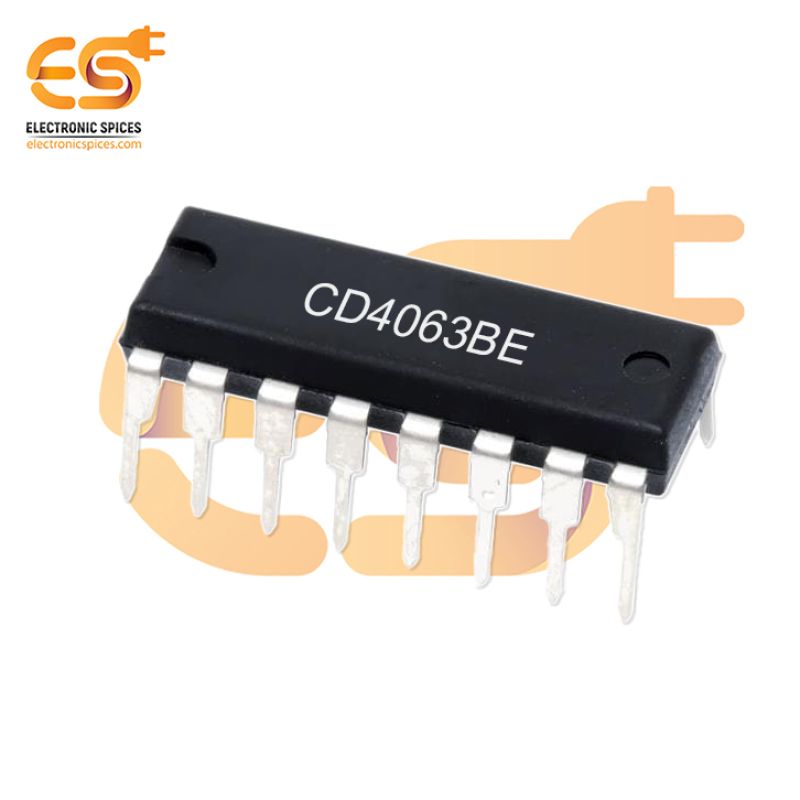

CD4063BE Magnitude Comparator Bit Active Logic IC High Output AB 16-PDIP

Specification :-

  • Package: PDIP16 (0.300", 7.62mm)
  • Mounting Style: Through Hole
  • Logic Function: A < B, A = B, A > B
  • Propagation Delay Time: 140 ns, 175 ns
  • Supply Voltage - Min: 3 V
  • Supply Voltage - Max: 18 V
  • Supply Current - Max: 100 uA
Available in Pack Of:

SKU: MY8542A

MRP Rs. 680.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

CD4063BE Magnitude Comparator Bit Active Logic IC High Output A<B, A=B, A>B 16-PDIP

The CD4063BE is a 4-bit magnitude comparator IC designed to compare two 4-bit binary words and determine their relationship. It provides three outputs: A<B, A=B, and A>B, indicating whether the first binary input (A) is less than, equal to, or greater than the second binary input (B). The device can also be cascaded to compare larger Binary Numbers, making it highly versatile for arithmetic and logic operations in digital systems. As part of the CMOS family, the CD4063BE offers high noise immunity, low power consumption, and wide compatibility with TTL and CMOS logic levels. It operates across a wide supply voltage range of 3V to 15V, making it suitable for a variety of applications. Housed in a 16-pin PDIP (Plastic Dual In-line Package), it is ideal for through-hole mounting and straightforward integration into digital circuit designs.

Features :

  • Reliable performance in noisy Digital environments
  • 16-pin PDIP for through-hole mounting
  • Suitable for low-energy applications
  • Functionality : Compares two 4-bit binary inputs and provides outputs for A<B, A=B, and A>B conditions
