Specification:-
- Package: PDIP14 (0.300", 7.62mm)
- Number of Output Lines: 1 Output
- Low Level Output Current: 6.8 mA
- High Level Output Current: - 6.8 mA
- Propagation Delay Time: 75 ns
- Supply Voltage - Min: 3 V
- Supply Voltage - Max: 18 V
SKU: BM8542A

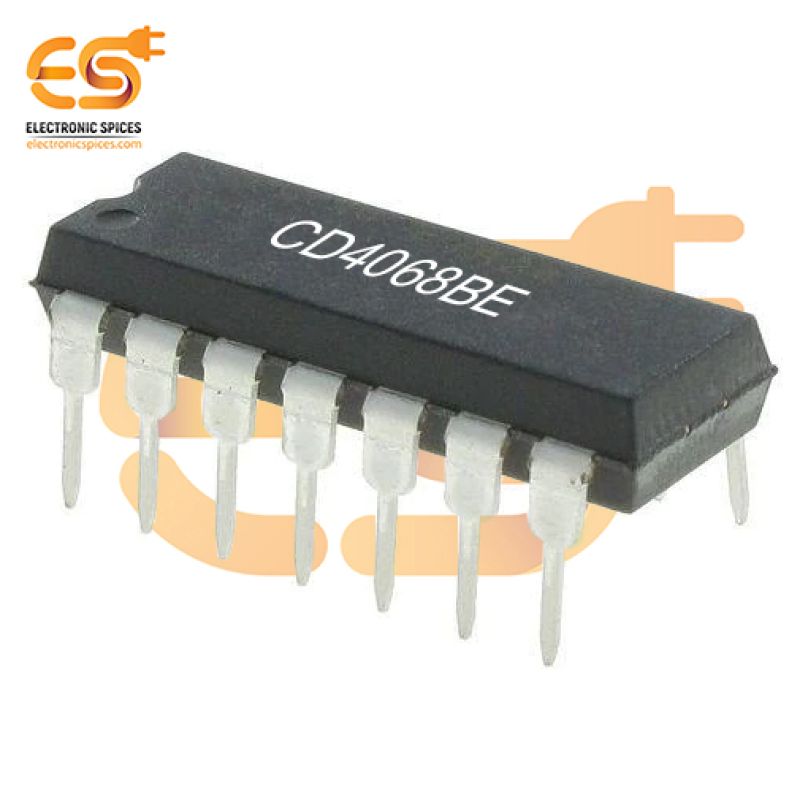

CD4068BE NAND/AND Gate Configurable 1 Circuit 8 Input 14-PDIP
The CD4068BE is a versatile logic IC that functions as an 8-input NAND or AND gate, allowing for flexible use in a variety of digital systems. The configuration of the gate can be adjusted depending on the needs of the circuit, providing the ability to perform both NAND and AND logic operations. This makes the IC highly adaptable in complex logic systems, as it can be used for a wide range of tasks, including signal processing, logic control, and condition checking. The CD4068BE features a single 8-input logic gate in one package, making it highly efficient in terms of space and functionality. It is part of the CD4000 series of CMOS logic ICs, which are known for their low power consumption, wide operating voltage range, and compatibility with TTL systems. The IC operates over a voltage range of 3V to 15V and is housed in a 14-pin PDIP (Plastic Dual In-line Package), which is suitable for through-hole mounting in various designs. This IC is commonly used in digital circuits where multiple conditions need to be evaluated simultaneously, such as in combinational logic circuits, control systems, and decision-making processes within electronic devices.
Features:-
- 8-input NAND/AND gate (configurable)
- 14-pin PDIP for through-hole mounting
- Reliable operation even in noisy digital environments
- CMOS (Complementary Metal-Oxide-Semiconductor)
