Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Input Frequency: DC to 3.5 MHz
- Supply Voltage-Max (Vsup): 18 V
- Supply Voltage-Min (Vsup): 3 V
- Supply Voltage-Nom (Vsup): 5 V
- Operating Temperature: -55°C ~ 125°C
SKU: TQ8539A

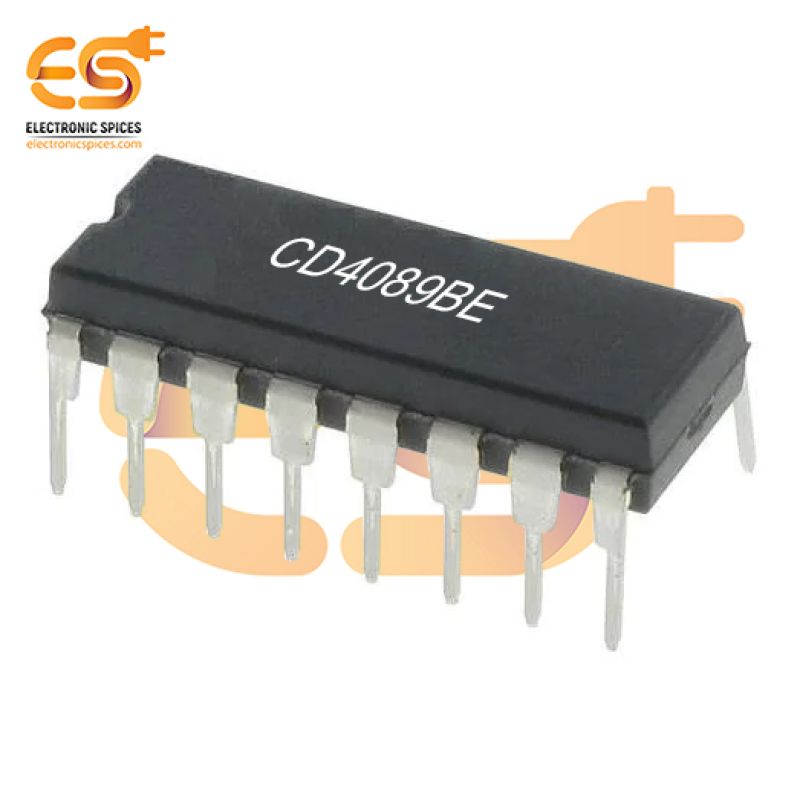

CD4089BE Binary Rate Multiplier Logic IC 16-PDIP
The CD4089BE is a binary rate multiplier logic IC designed for efficient frequency and data rate conversion in digital systems. This IC allows the multiplication of an input frequency by a specified binary factor, making it ideal for applications that require frequency synthesis, clock generation, and timing operations. The CD4089BE operates with a wide voltage range (3V to 18V), ensuring compatibility with a variety of logic circuits and systems. It is housed in a 16-pin PDIP (Plastic Dual In-line Package) for easy integration into through-hole designs, making it well-suited for both prototyping and production environments. The binary rate multiplier functionality of the CD4089BE makes it particularly valuable for generating clock signals at higher rates from a lower frequency input. It can be used in systems requiring frequency modulation, clock multiplication, or for applications in communication, control systems, and data processing. Its low power consumption and robust performance also make it suitable for portable or battery-operated devices. The CD4089BE provides precise and reliable frequency multiplication with minimal signal degradation, offering excellent signal integrity for critical timing applications.
Features:-
- Binary rate multiplier logic IC
- Allows input frequency to be multiplied by a binary factor
- 16-pin PDIP for easy integration into standard PCB designs
- Energy-efficient design for portable and low-power systems
