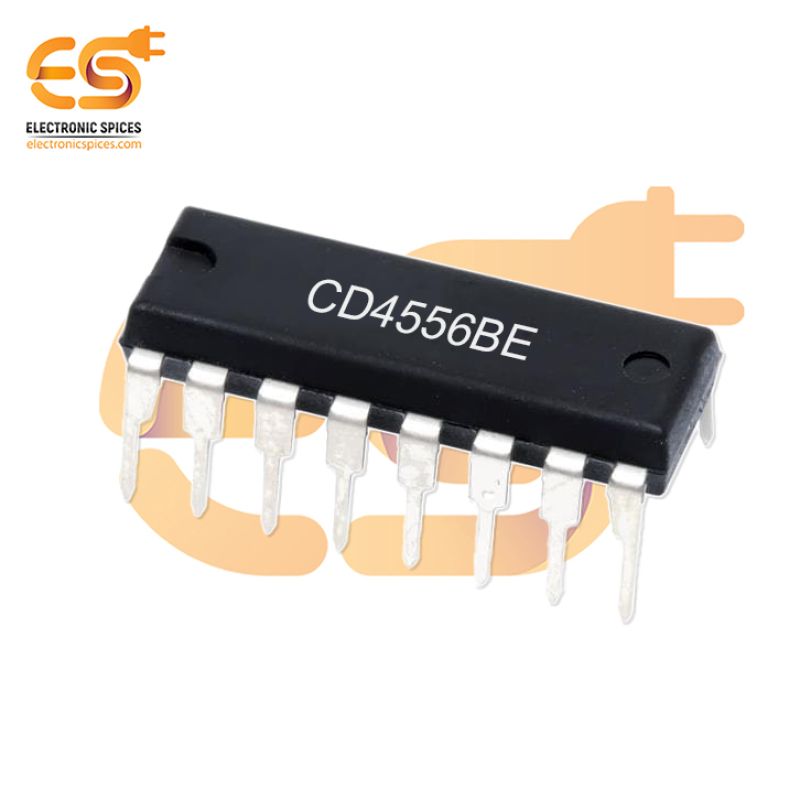

CD4556BE Decoder/Demultiplexer Logic IC 1 x 2:4 16-PDIP

CD4556BE Decoder/Demultiplexer Logic IC 1 x 2:4 16-PDIP

The CD4556BE is a versatile decoder/demultiplexer IC designed to simplify digital signal routing in logic circuits. This IC features a single 2-to-4 decoder or demultiplexer, enabling the conversion of 2 input lines into 4 distinct output lines. It is capable of decoding binary-coded inputs into one of four mutually exclusive outputs. The device also has enable inputs for greater control, allowing it to be used as a demultiplexer in digital systems. The CD4556BE is part of the CMOS family, ensuring low power consumption and compatibility with both CMOS and TTL logic levels. Housed in a 16-pin PDIP (Plastic Dual In-line Package), the CD4556BE is ideal for through-hole PCB mounting. It operates across a wide voltage range of 3V to 15V, making it suitable for a variety of applications. The IC’s high noise immunity and reliable performance make it an excellent choice for signal decoding, address decoding, and digital demultiplexing in systems such as memory addressing, data routing, and control logic.

Features :-

• 2-to-4 decoding or demultiplexing
• Reliable operation in noisy environments
• 16-pin PDIP for through-hole mounting
• Provides additional control for enabling or disabling outputs
