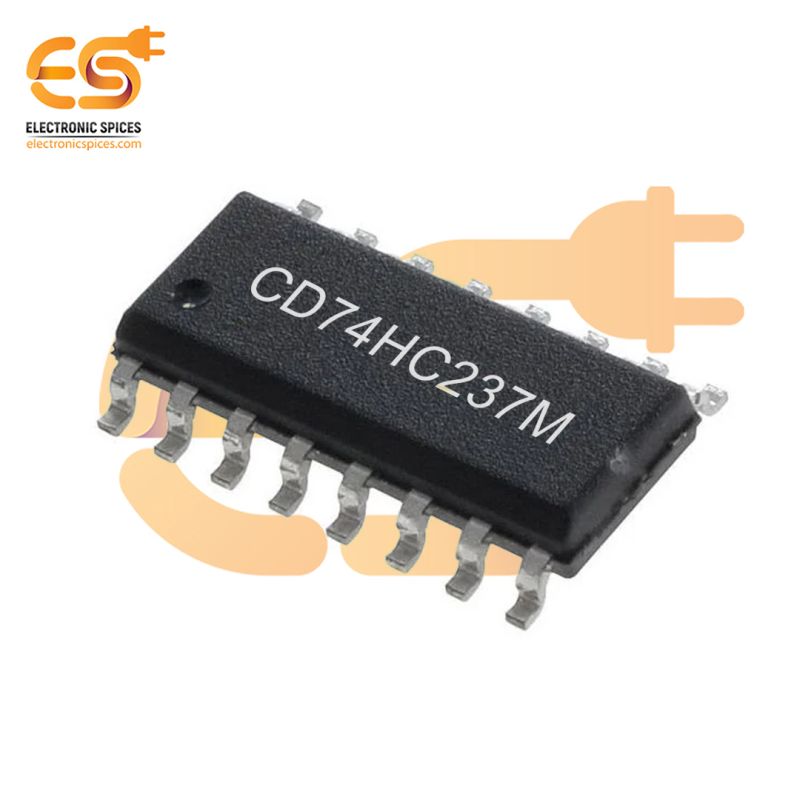

CD74HC237M Decoder/Demultiplexer Logic IC 1 x 3:8 16-SOIC

CD74HC237M Decoder/Demultiplexer Logic IC 1 x 3:8 16-SOIC

The CD74HC237M is a high-speed decoder/demultiplexer IC designed for applications requiring efficient binary-to-output decoding or digital signal demultiplexing. This IC functions as a 3-to-8 line decoder or demultiplexer, allowing the conversion of 3 binary inputs into 8 unique outputs. It also features address latches for storing the input address, making it suitable for applications where input data needs to be latched and decoded simultaneously. The device includes an active-low enable pin for flexible control of output activation. As part of the HC (High-Speed CMOS) family, the CD74HC237M offers fast switching speeds and low power consumption. It operates across a wide voltage range of 2V to 6V, ensuring compatibility with various logic families. Packaged in a compact 16-SOIC (Small Outline Integrated Circuit), it is Optimized for Surface-Mount technology, making it ideal for compact and high-density PCB designs. Its robust design, high noise immunity, and reliable performance make it suitable for use in address decoding, memory interfacing, data routing, and other digital logic applications.

Features :-

• 3-to-8 line decoding or demultiplexing
• Reliable operation in noisy environments
• Active-low enable input for output control
• Fast switching for high-frequency applications
• Provides additional control for enabling or disabling outputs
