LOGIC IC

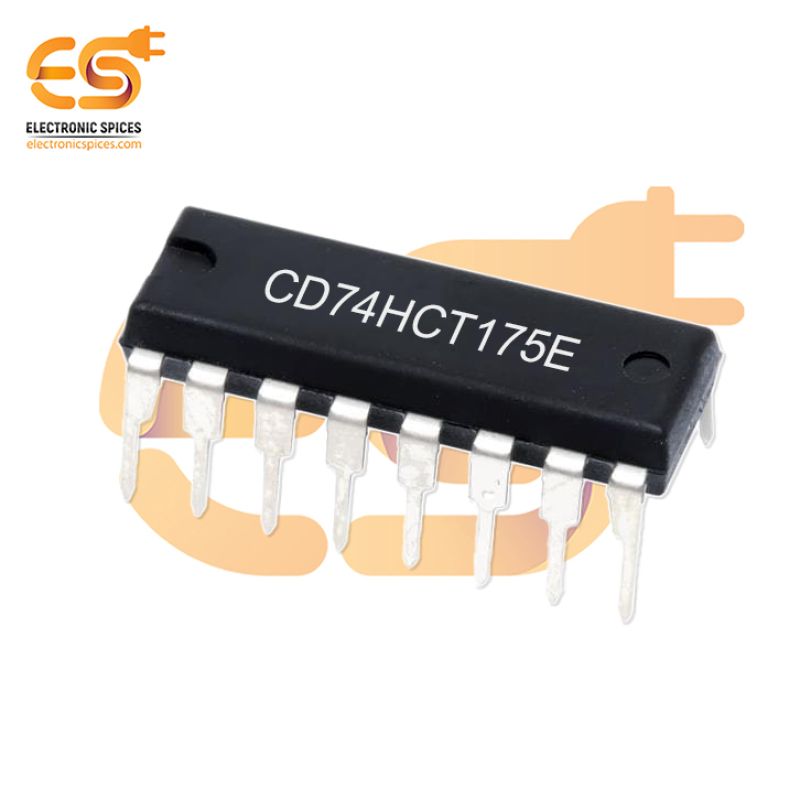

CD74HCT175E Flip Flop 1 Element D-Type Logic IC 4 Bit Positive Edge 16-PDIP

Specification:-

  • Package: PDIP16 (0.300", 7.62mm)
  • Number of Circuits: 4 Circuit
  • Propagation Delay Time: 33 ns
  • High Level Output Current: - 4 mA
  • Low Level Output Current:  4 mA
  • Supply Voltage - Min: 4.5 V
  • Supply Voltage - Max: 5.5 V
Available in Pack Of:

SKU: KN8542A

MRP Rs. 660.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

CD74HCT175E Flip Flop 1 Element D-Type Logic IC 4 Bit Positive Edge 16-PDIP

The CD74HCT175E is a high-speed, 4-bit D-type flip-flop IC designed for use in digital storage and data synchronization applications. This IC contains four positive-edge-triggered flip-flops within a single 16-pin PDIP (Plastic Dual In-line Package), offering compact and reliable performance. Each flip-flop features individual D (data), clock, and clear inputs, along with complementary Q and Q̅ outputs, making it versatile for use in complex digital systems. As part of the HCT (High-Speed CMOS with TTL compatibility) family, the provides fast switching speeds and improved noise immunity while maintaining low power consumption. It operates within a voltage range of 4.5V to 5.5V, ensuring compatibility with TTL and CMOS logic families. The positive-edge triggering ensures that data on the D input is reliably transferred to the Q output on the rising edge of the clock signal, making the IC suitable for clocked storage, data synchronization, and register-based applications.

Features :-

  • 4-bit, 1-element (4 flip-flops in one package)
  • Positive edge-triggered operation
  • 16-pin PDIP for through-hole mounting
  • Fast switching suitable for high-frequency applications
