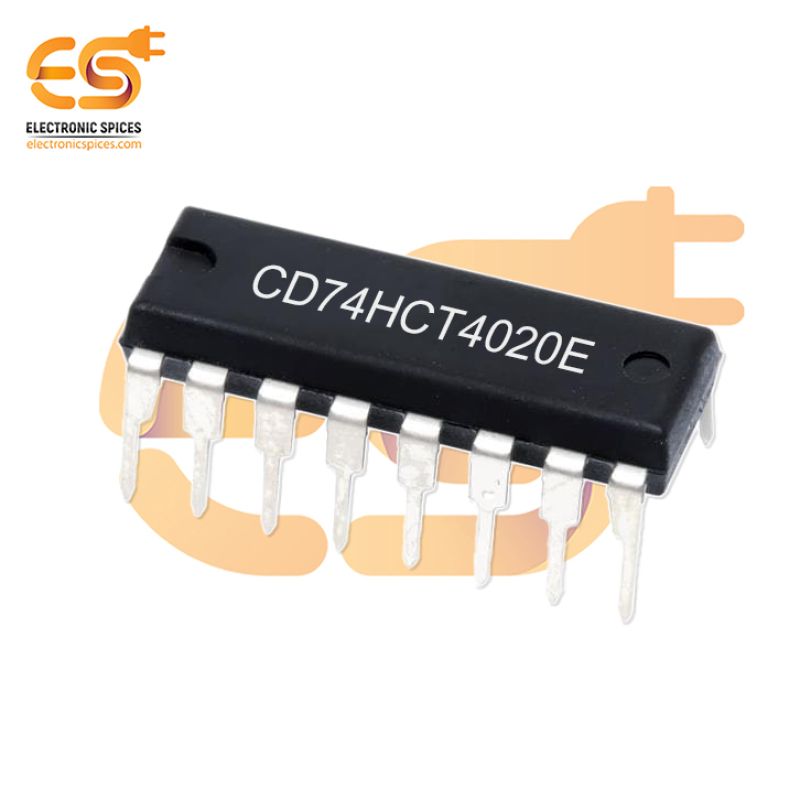

CD74HCT4020E Counter IC Binary Counter 1-Element 14 Bit Negative Edge 16-PDIP
Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Type: Counter ICs
- Counter Type: Binary
- Number of Bits: 14 bit
- Output Current: +/- 4 mA
- Operating Supply Voltage: 4.5 V to 5.5 V
SKU: QN8539A
CD74HCT4020E Counter IC Binary Counter 1-Element 14 Bit Negative Edge 16-PDIP
The CD74HCT4020E is a high-speed, 14-bit binary counter IC designed for use in digital counting applications. It features a single 14-bit counter element that increments on the negative edge of the clock signal, offering precise and reliable operation in counting systems. As part of the HCT (High-Speed CMOS with TTL compatibility) family, it provides faster switching speeds and improved noise immunity compared to standard CMOS devices, making it ideal for use in high-speed digital circuits. The IC is housed in a 16-pin PDIP (Plastic Dual In-line Package), which is ideal for through-hole mounting and easy integration into standard PCB designs. This counter IC counts from 0 to 16,383 in binary, with the output provided across 14 bits, enabling efficient parallel counting. It is widely used in applications such as frequency dividers, event counters, time delay circuits, and digital clocks. The CD74HCT4020E offers precise negative edge-triggered counting, making it suitable for synchronous systems where the clock signal controls timing. Its reliable output, combined with low power consumption, makes it a valuable component in digital signal processing and timing-based applications.
Features:-
- 14-bit binary counter
- 16-pin PDIP for through-hole mounting
- Fast switching for high-speed counting operations
- Increments on the negative edge of the clock signal
- Energy-efficient design suitable for low-power systems
