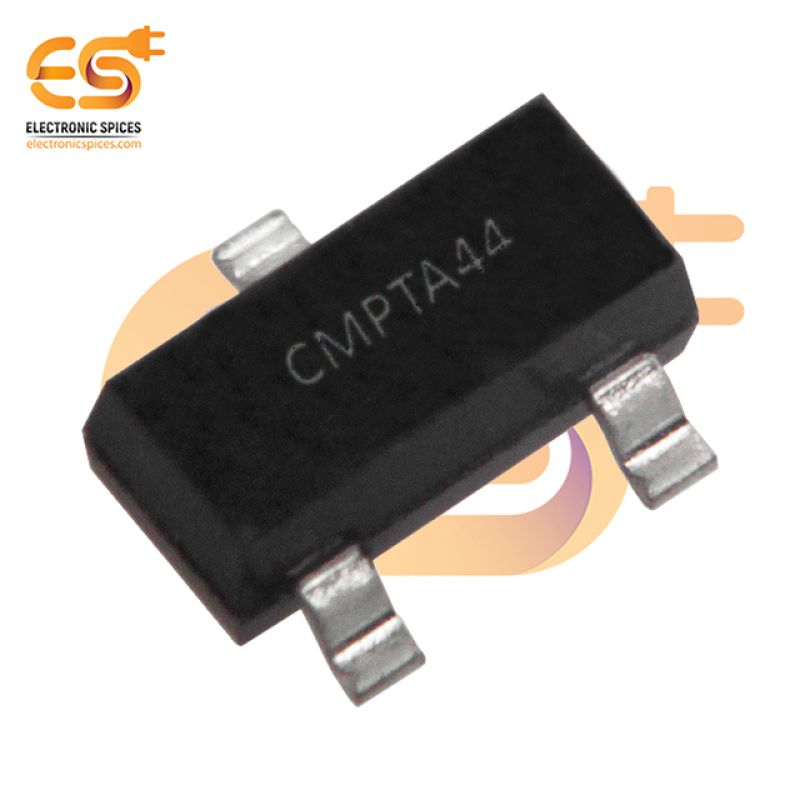

CMPTA44 Surface Mount NPN Single Bipolar (BJT) Transistor SOT-23-3

CMPTA44 Surface Mount NPN Single Bipolar (BJT) Transistor SOT-23-3

The CMPTA44 is a Surface Mount NPN Bipolar Junction Transistor (BJT) designed for general-purpose amplification and switching applications. Encased in the compact SOT-23-3 package (also referred to as TO-236-3 or SC-59), the CMPTA44 is ideal for applications where space is limited, offering high performance in a small form factor. This transistor features a collector-emitter voltage rating of 400V, making it suitable for high-voltage applications, such as power supplies, voltage regulation, and motor control. With a maximum collector current rating of 2A, it can drive moderate loads or switch high currents efficiently. The transition frequency of 10 MHz enables the CMPTA44 to operate effectively in high-speed switching circuits, ensuring reliable performance in applications like audio amplification, RF circuits, and signal processing. Additionally, the CMPTA44 can dissipate up to 2W of power, making it suitable for low-to-moderate power applications while maintaining manageable heat levels. Its small size, combined with robust electrical characteristics, allows the CMPTA44 to be used in a variety of consumer electronics, automotive, and industrial systems.

Features:-

• High Voltage Rating
• Reliable Performance
• Compact Package
• Moderate Current Handling
