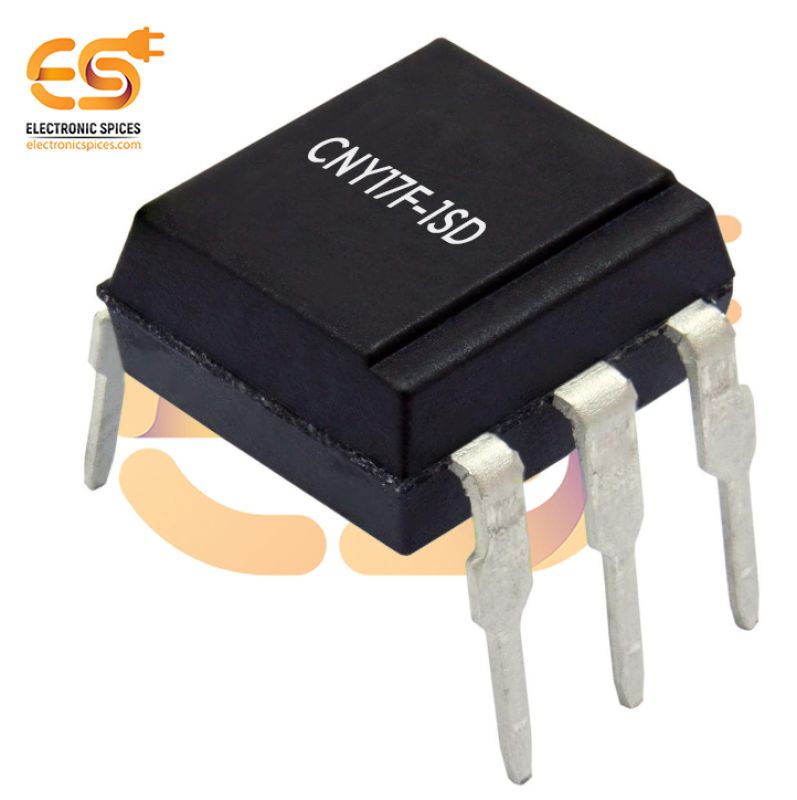

CNY17F-1SD Output 5300Vrms 1 Channel Opto-isolator Transistor

CNY17F-1SD Output 5300Vrms 1 Channel Opto-isolator Transistor

The CNY17F-1SD Opto-isolator is a reliable single-channel optocoupler designed for applications requiring electrical isolation and signal transfer between circuits. With a high isolation voltage rating of 5300Vrms, it provides excellent protection against electrical surges and noise, ensuring the integrity and safety of connected circuits. The device integrates an infrared LED and a phototransistor in a compact 6-pin DIP package, making it suitable for both space-constrained and high-performance designs. This opto-isolator is optimized for a wide range of applications, including power supply feedback loops, signal isolation in industrial control systems, and interfacing microcontrollers with high-voltage circuits. Its robust construction supports operation in harsh environments, while the high current transfer ratio ensures efficient signal transmission. The device features a low input drive current requirement, making it ideal for energy-conscious designs. The CNY17F-1SD is versatile, with compatibility across standard through-hole PCB layouts for straightforward integration into various circuits. Its performance and dependability make it an excellent choice for engineers seeking a cost-effective solution for isolation and signal transfer challenges. Whether used in automation systems, communication devices, or consumer electronics, this opto-isolator delivers consistent performance and long-lasting reliability.

Applications:-

• Microcontroller interface
• Telecommunication
• Industrial Automation
• Switching Power Supplies
