Specification:-
- Package: TSSOP-48 (0.240", 6.10mm)
- No. of pins: 20 pin
- Output Type: 3-State
- Supply Voltage-Max (Vsup): 5.25 V
- Supply Voltage-Min (Vsup): 4.75 V
- Supply Voltage-Nom (Vsup): 5 V
- Logic Type: Transceiver, Non-Inverting
- Number of Bits per Element: 4
- Operating Temperature: -40°C to 85°C
SKU: JI8542E1

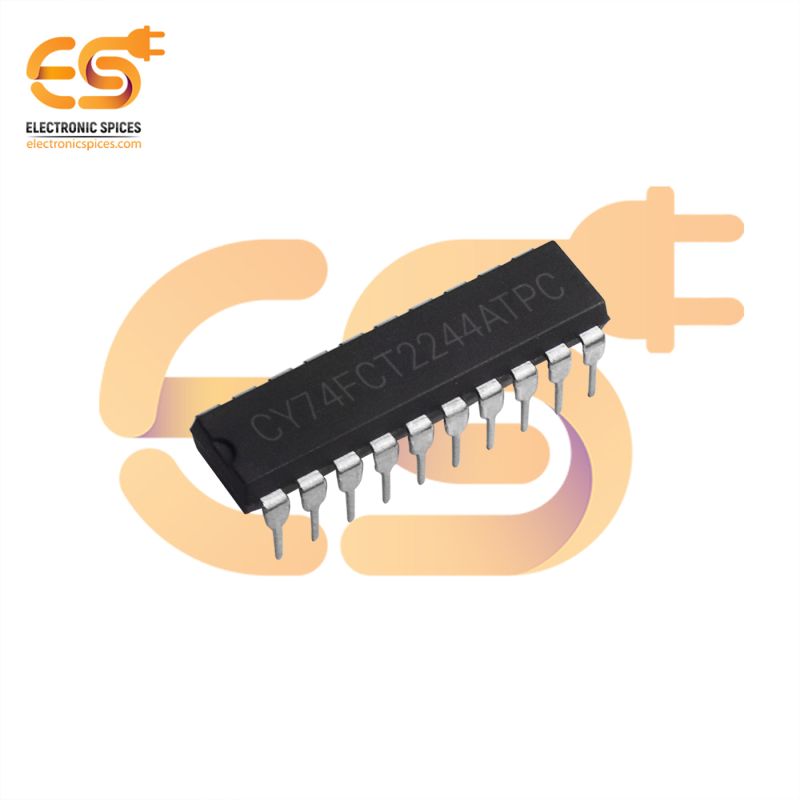

CY74FCT2244ATPC 4-Bit Non-Inverting IC 20-PDIP
The CY74FCT2244ATPC is a high-performance non-inverting buffer designed for data buffering and driving capabilities in digital circuits. This device consists of two independent 4-bit buffers, each providing reliable data transfer with minimal delay. It features 3-state outputs, allowing the output lines to be effectively isolated when not in use, which is crucial for bus-oriented systems where multiple devices share the same communication lines. Packaged in a 20-PDIP (Plastic Dual In-Line Package), the CY74FCT2244ATPC is easy to handle and install, making it suitable for a wide range of applications in both prototyping and production environments. Its robust design ensures compatibility with various logic families, supporting both 3.3V and 5V operations, which makes it highly versatile for different system requirements. The buffer's high-speed performance, low power consumption, and ability to drive high-capacitance loads make it ideal for use in memory interfacing, clock distribution, and other timing-sensitive applications.
Features:-
- Compact 20-PDIP Package
- High-Speed Performance
- Low Power Consumption
- Wide Operating Voltage Range
- Capable of driving high-capacitance loads
