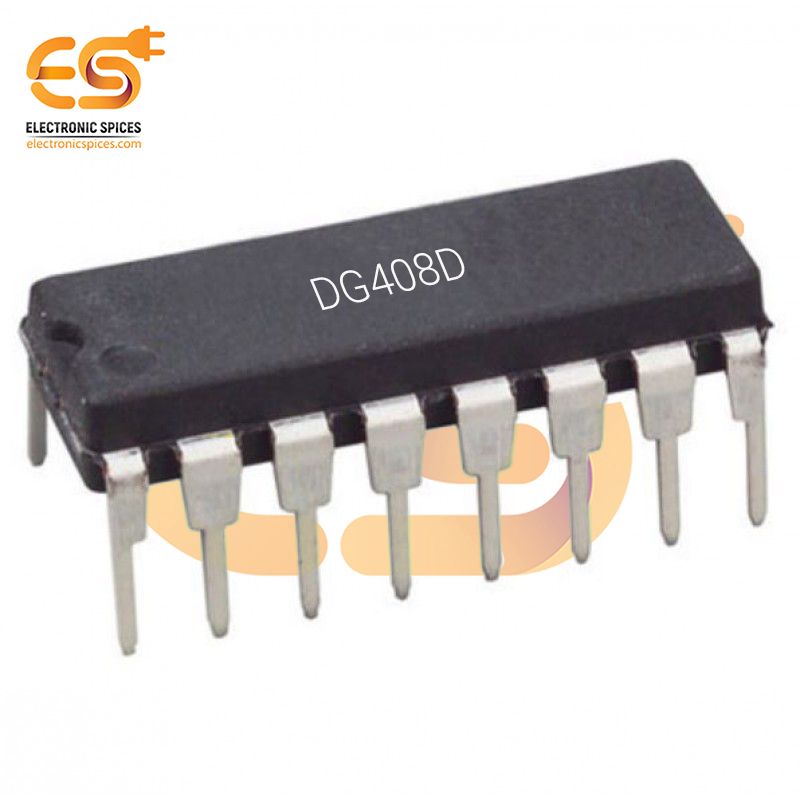

DG408D Improved, 8-Channel/Dual 4-Channel, CMOS Analog Multiplexer IC
Specification:-
- Peak Current: 100mA
- Continuous Current: 30mA
- Low On-Resistance, 100Ω Max
- Input Leakage, 5nA Max at +85°C
- Low Power Consumption, 1.25mW Max
- Operating Temperature Ranges: 0°C to +70°C
- Storage Temperature Range: -65°C to +150°C
SKU: CF8501A
DG408D Improved, 8-Channel/Dual 4-Channel, CMOS Analog Multiplexer IC
The DG408D is a versatile CMOS analog multiplexer IC designed for high-performance signal routing applications. This device offers an 8-channel multiplexer configuration, with the ability to select and route any one of eight input signals to a single output. Alternatively, it can function as two separate 4-channel multiplexers. The selection of channels is controlled through binary inputs, allowing for efficient signal switching in digital and analog applications. Key features of the DG408D include its low on-resistance (typically around 50Ω), which minimizes signal loss or distortion during the switching process, ensuring high signal integrity. It also has low power consumption, which is particularly important for energy-sensitive systems. The device is capable of handling both analog and digital signals, with operation over a wide voltage range of ±15V or 30V single supply. The DG408D is optimized for high-speed switching with fast switching times and low crosstalk, making it ideal for applications requiring rapid and accurate signal routing. The IC's low power dissipation and low noise characteristics further enhance its suitability for use in sensitive applications such as data acquisition, audio switching, telecommunications, and instrumentation systems. Additionally, the DG408D features built-in protection against electrostatic discharge (ESD), ensuring reliable performance even in demanding environments.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Rail-to-Rail Signal Handling
- Digital Input Controls TTL/CMOS Compatible
