LOGIC IC

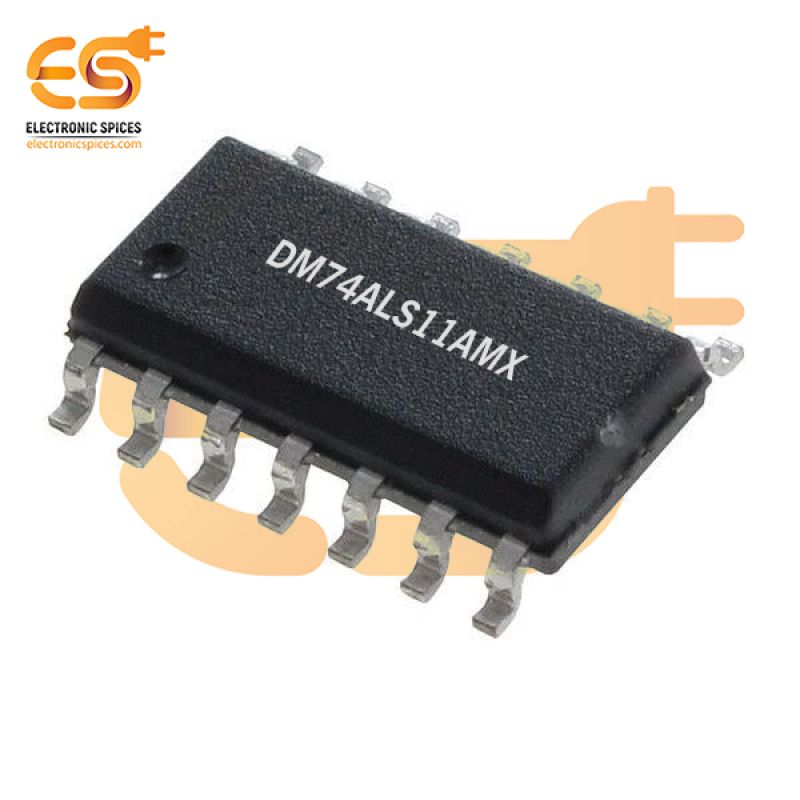

DM74ALS11AMX AND Gate Logic IC 3 Channel 14-SOIC

Specification:-

  • Package/Case: SOIC14 (0.154", 3.90mm)
  • Number of Gates: 3 Gate
  • Logic Function: AND
  • Number of Output Lines: 1 Output
  • Low Level Output Current: 8 mA
  • High Level Output Current: - 400 uA
  • Propagation Delay Time: 13 ns
  • Supply Voltage - Min: 4.5 V
  • Supply Voltage - Max: 5.5 V

Available in Pack Of:

SKU: XM8541A

MRP Rs. 620.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

DM74ALS11AMX AND Gate Logic IC 3 Channel 14-SOIC

A logical AND operation on three input signals is possible with the DM74ALS11AMX, a 3-input AND gate logic integrated circuit (IC) from the Advanced Low Power Schottky (ALS) series. The gate produces a high (1) output when all three inputs are high (1). Low (0) will be the output if any of the inputs are low (0). Because of this, it is perfect for implementing logic functions that require the fulfillment of several conditions before a particular output is produced. The DM74ALS11AMX and other logic gates in the ALS series are well-known for operating at high speeds and with low power consumption, which makes them appropriate for a range of uses in contemporary digital circuits. Fast switching speeds and low voltage operation (usually between 4.5V and 5.5V) are features of the device that guarantee effective signal processing and little delay in logic operations. A surface-mount form factor that is ideal for high-density PCB designs, the 14-SOIC (Small Outline Integrated Circuit) package in which the DM74ALS11AMX is packaged saves space and makes electronic devices smaller overall. When high performance is needed but space is at a premium, this package type is frequently utilized in consumer electronics, automotive systems, communication devices, and industrial applications.

Features:-

  • 3-Input AND Gate
  • Low Power Consumption
  • High-Speed Operation
  • Compact 14-SOIC Package
