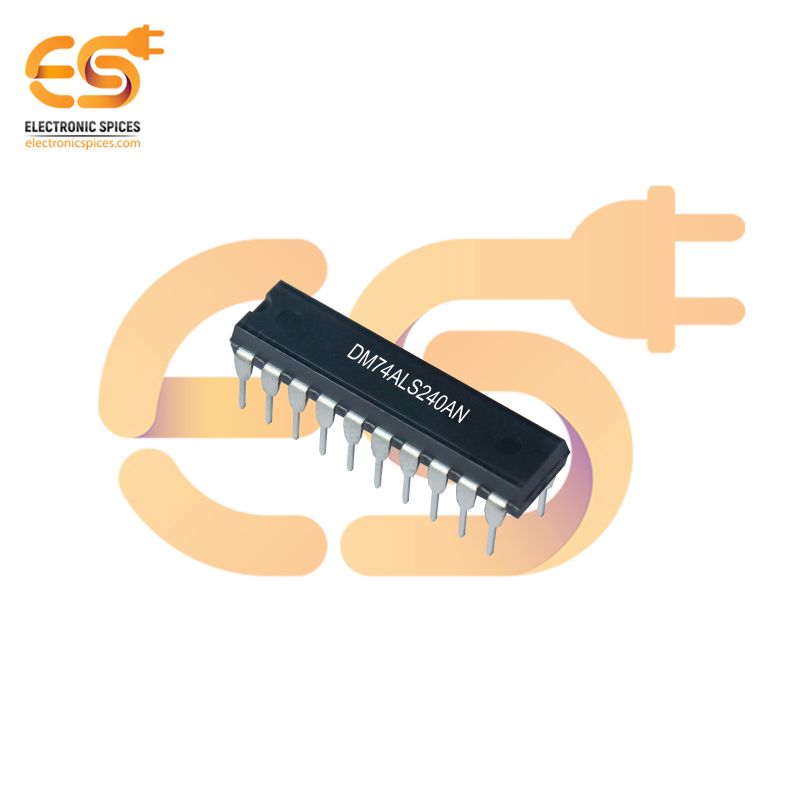

DM74ALS240AN Buffer Logic IC Inverting 2-Element 4-Bit per Element 3-State Output 20-PDIP

DM74ALS240AN Buffer Logic IC Inverting  2-Element 4-Bit per Element 3-State Output 20-PDIP

The DM74ALS240AN is a high-performance buffer logic IC featuring inverting outputs, designed for use in digital systems requiring high-speed and reliable data buffering. It consists of 2 elements, each capable of handling 4 bits, providing a total of 8-bit data handling capacity. The IC incorporates a 3-state output configuration, enabling multiple devices to share a common bus without interference, making it ideal for applications where bus sharing is necessary. Packaged in a standard 20-pin dual in-line package (20-PDIP), the DM74ALS240AN is designed for through-hole mounting, ensuring ease of integration in various circuit designs, from prototyping to production-level applications. Its inverting logic functionality ensures that the output signals are the logical complement of the input signals, a feature particularly useful in specific signal processing and control applications. Built on advanced low-power Schottky (ALS) technology, the IC offers reduced power consumption while maintaining high-speed performance, making it suitable for time-sensitive digital operations. It operates across a broad voltage range and includes safeguards against electrical noise, enhancing system reliability.

Features:-

• Wide Voltage Range
• High-Speed Operation
• Low Power Consumption
• Standard 20-PDIP Package
