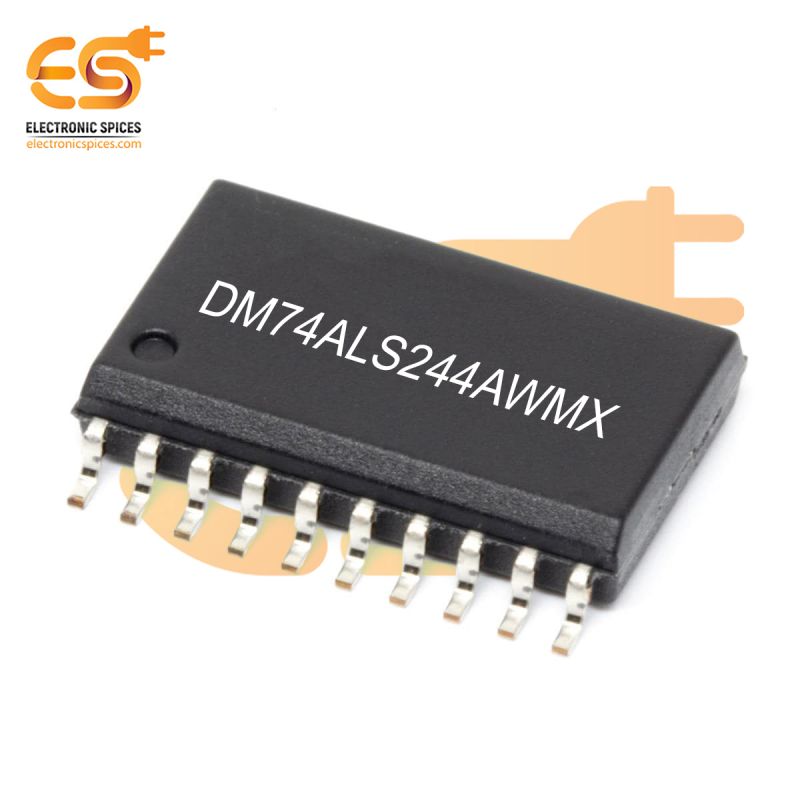

DM74ALS244AWMX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC

DM74ALS244AWMX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC

The DM74ALS244AWMX is a non-inverting buffer logic IC designed to provide 2 elements, each handling 4 bits of data, for a total of 8 buffered bits. It features 3-state outputs, which allow the outputs to be enabled or placed in a high-impedance state, facilitating the connection of multiple devices to a shared bus without interference. This IC belongs to the ALS (Advanced Low-Power Schottky) family, offering a combination of high speed and low power consumption. It is particularly well-suited for applications requiring fast signal propagation and low power dissipation. The device operates reliably over a broad range of voltage levels, ensuring compatibility with various system designs. Encased in a 20-pin SOIC (Small Outline Integrated Circuit) package, the DM74ALS244AWMX is ideal for surface-mount technology (SMT) applications, ensuring compact, lightweight, and efficient circuit board layouts. Its non-inverting design ensures that the input signals are replicated exactly at the outputs, maintaining data integrity.

Features :-

• Wide Voltage Range
• High-Speed Operation
• Low Power Consumption
• Standard 20-SOIC Package
