Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Number of Input Lines: 1 Input
- Number of Output Lines: 8 Output
- Number of Bits: 3 bit
- Output Current: 24 mA
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
- Propagation Delay Time: 15 ns at 4.5 V to 5.5 V
SKU: UG8517A

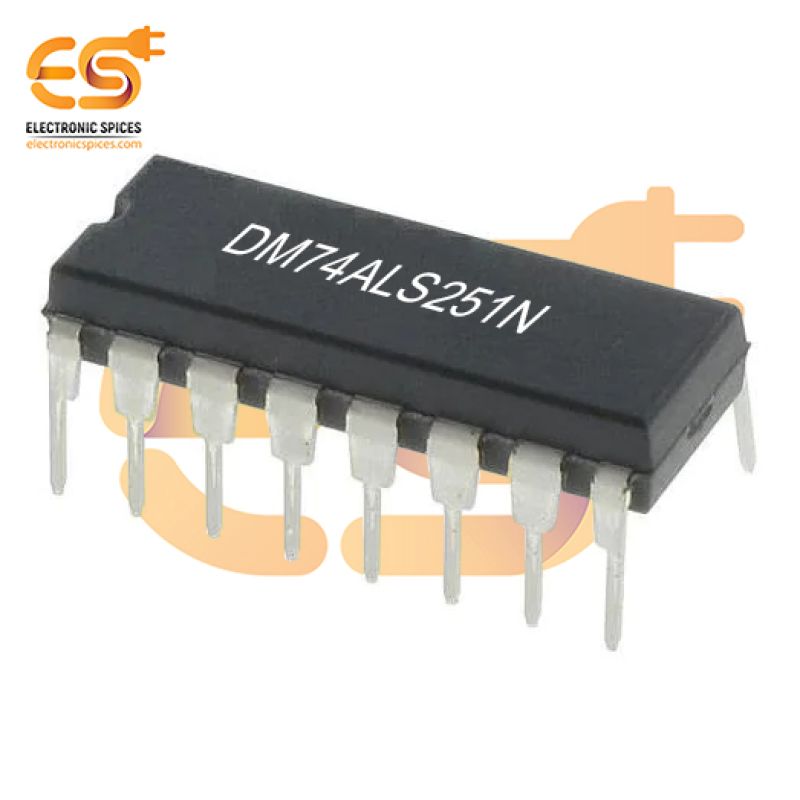

DM74ALS251N Logic IC Multiplexer 1 x 8:1 16-PDIP
The DM74ALS251N is a multiplexer logic IC designed to provide high-speed data routing and switching capabilities in digital systems. Housed in a 16-PDIP package, this 8-channel multiplexer can select one of eight input lines based on the 3-bit control inputs. It features a 1-to-8 channel configuration, allowing a single output to be connected to any one of the eight input channels. This device operates with a low propagation delay, ensuring fast switching between input channels, making it suitable for high-speed applications. The multiplexer’s wide supply voltage range and compatibility with standard TTL logic levels ensure its versatility in various system designs. The DM74ALS251N is designed for both control and data routing purposes in a variety of electronic systems, such as digital signal processing, data multiplexing, and communication systems. Its ability to handle multiple input channels with efficient switching makes it a valuable component for applications requiring the selective routing of signals.
Feature:-
- Fast Switching
- 8-Channel Multiplexer
- Low Power Consumption
- Compact 16-PDIP Package
