LOGIC IC

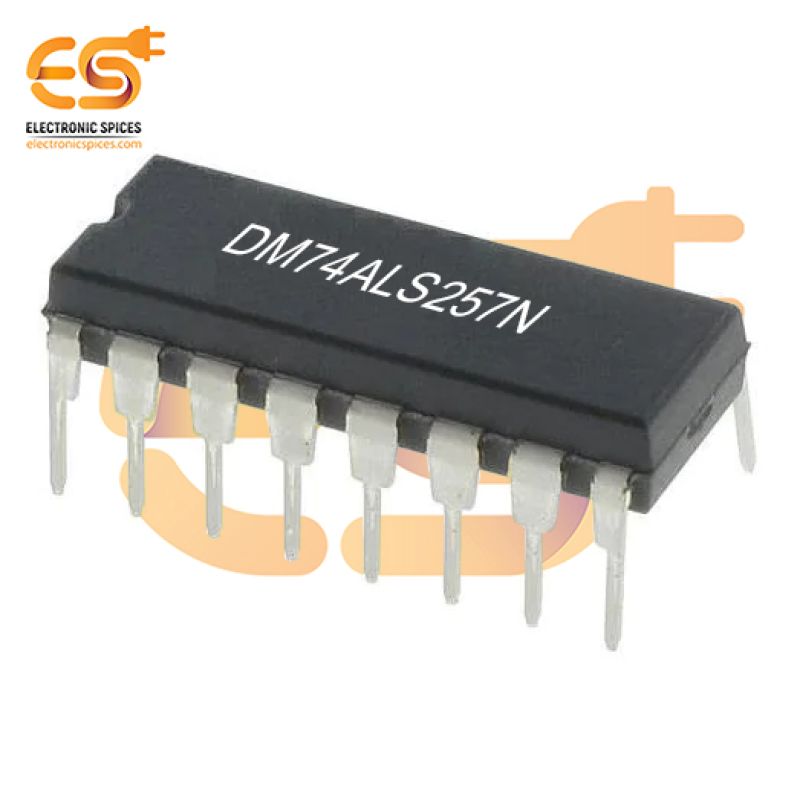

DM74ALS257N Logic IC Multiplexer 4 x 2:1 16-PDIP

Specification:-

  • Package: PDIP16 (0.300", 7.62mm)
  • Number of Input Lines: 1 Input
  • Number of Output Lines: 2 Output
  • Number of Bits: 4 bit
  • Supply Voltage - Min: 4.5 V
  • Supply Voltage - Max: 5.5 V
  • Propagation Delay Time: 12 ns at 4.5 V to 5.5 V
Available in Pack Of:

SKU: JY8517A

MRP Rs. 705.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18.00% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

DM74ALS257N Logic IC Multiplexer 4 x 2:1 16-PDIP

The DM74ALS257N is a 4 x 2:1 multiplexer logic IC that allows for efficient selection and routing of digital signals. This IC features four separate 2-input channels, where each channel can route one of its two inputs to its corresponding output, based on the control inputs. The multiplexing functionality is critical for applications that require the management and switching of multiple data streams, enabling the selection of data from several sources to be passed to a single destination. Built with Advanced Low Power Schottky (ALS) technology, the DM74ALS257N offers high-speed operation and low power consumption, making it suitable for high-performance digital systems with stringent energy requirements. The IC is packaged in a 16-PDIP (Plastic Dual In-Line Package), a widely used through-hole package that simplifies integration into various PCB designs and provides robust and reliable connections. The DM74ALS257N operates with control logic inputs that determine the selection of one of the two input signals for each channel, making it flexible and adaptable to various circuit configurations. It is designed for applications in digital communication systems, data transmission, signal multiplexing, and switching operations, where the ability to manage multiple input signals efficiently is essential. With its fast switching capabilities and low propagation delay, this IC ensures reliable and precise performance in diverse electronic designs.

Feature:-

  • Fast Switching
  • Reliable Performance
  • Low Power Consumption
  • Compact 16-PDIP Package
