Specification:-
- Package: SOIC16 (0.154", 3.90mm)
- Propagation Delay Time: 80 ns
- Supply Voltage - Min: 4.75 V
- Supply Voltage - Max: 5.25 V
- Low Level Output Current: 8 mA
- High Level Output Current: - 400 uA
SKU: SO8517A

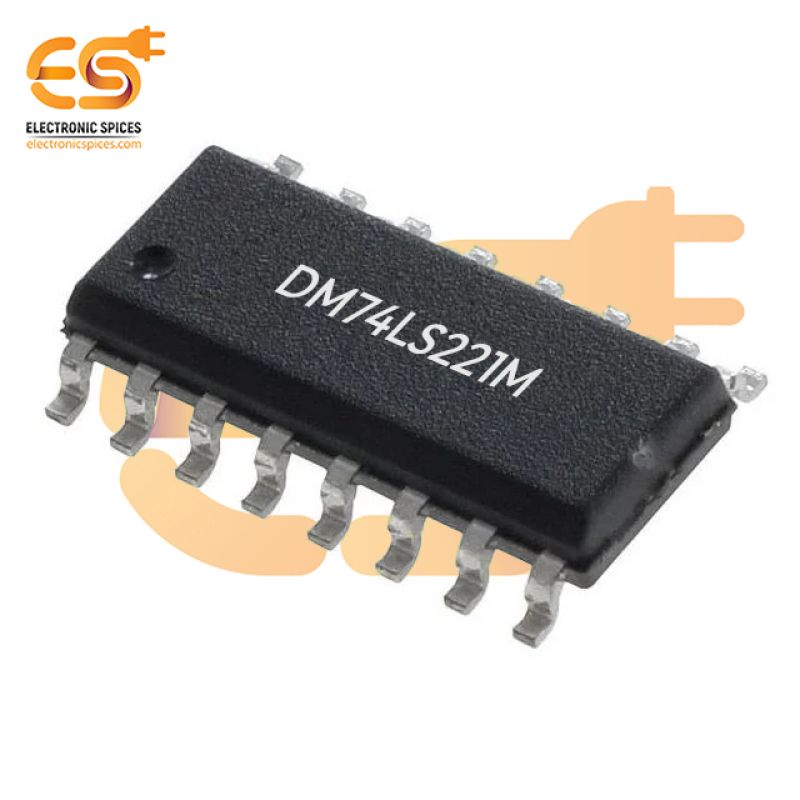

DM74LS221M Monostable Multivibrator Logic IC 45 ns 16-SOIC
The DM74LS221M is a monostable multivibrator logic IC designed to provide highly accurate pulse generation and timing control in digital circuits. Housed in a 16-SOIC package, this IC features a single monostable multivibrator capable of generating a precise output pulse in response to a triggering input. The device offers a propagation delay of 45 nanoseconds, ensuring fast and reliable operation for time-critical applications. This monostable multivibrator is retriggerable, meaning that it can be triggered multiple times before the previous pulse has finished, allowing for flexible timing control in various applications. The output pulse width can be adjusted by selecting appropriate external resistors and capacitors, offering the flexibility to generate different pulse durations based on the specific needs of the circuit. The DM74LS221M is built using low-power Schottky technology, resulting in reduced power consumption and improved noise immunity. It operates within a broad supply voltage range, making it compatible with different logic families and power systems. The IC is designed for use in timing applications such as frequency division, waveform shaping, edge detection, and pulse width modulation.
Feature:-
- High-Speed Performance
- Single Output Design
- Wide Input Compatibility
- Low Power Consumption
