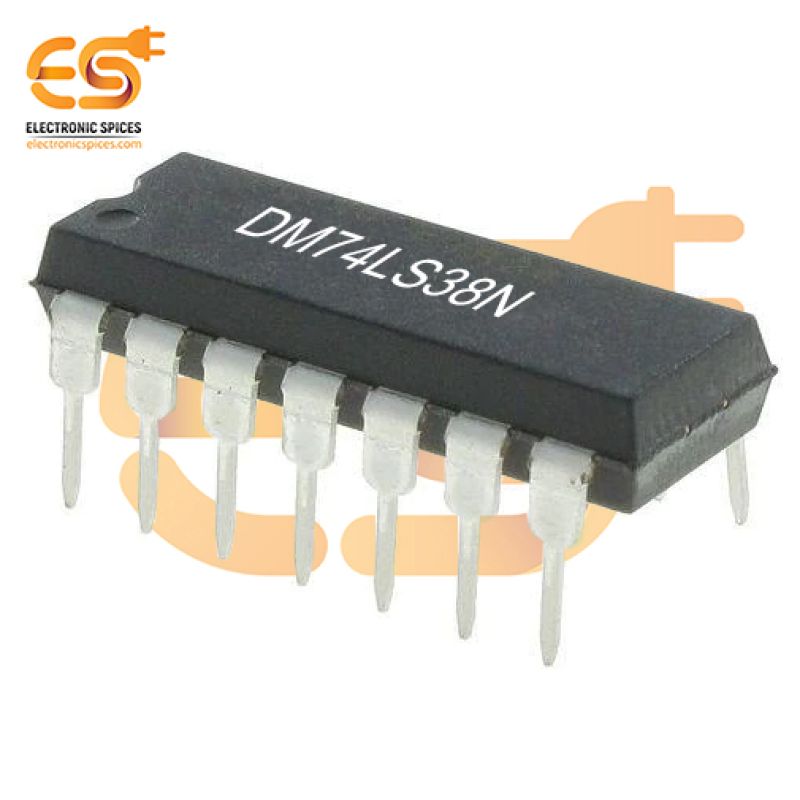

DM74LS38N NAND Gate Logic IC 4 Channel Open Collector 14-PDIP

DM74LS38N NAND Gate Logic IC 4 Channel Open Collector 14-PDIP

The DM74LS38N is a quad 2-input NAND gate logic IC with open collector outputs, housed in a 14-pin Dual In-line Package (PDIP). This device is part of the 7400 series of logic ICs and is designed for use in a variety of digital logic circuits. It features four independent 2-input NAND gates, each with an open collector output configuration. The open collector outputs of the DM74LS38N are ideal for applications that require wired-AND logic or where interfacing with higher voltage levels is necessary. These outputs can be connected to external components through a pull-up resistor, enabling the device to interface with different voltage levels or be used for driving LEDs, relays, or other high-power devices. This open collector configuration also reduces power consumption when the outputs are inactive. The DM74LS38N operates with a supply voltage range of 4.5V to 5.5V, ensuring compatibility with standard TTL (Transistor-Transistor Logic) systems. The IC provides reliable performance with low propagation delays and high noise immunity, making it suitable for various digital systems and control applications, including logic gates, data transmission, signal processing, and more.

Feature:-

• High-Speed Operation
• Low Power Dissipation
• Reliable Performance
• Robust Construction
