GLASS PASSIVATED FAST RECOVERY RECTIFIERS

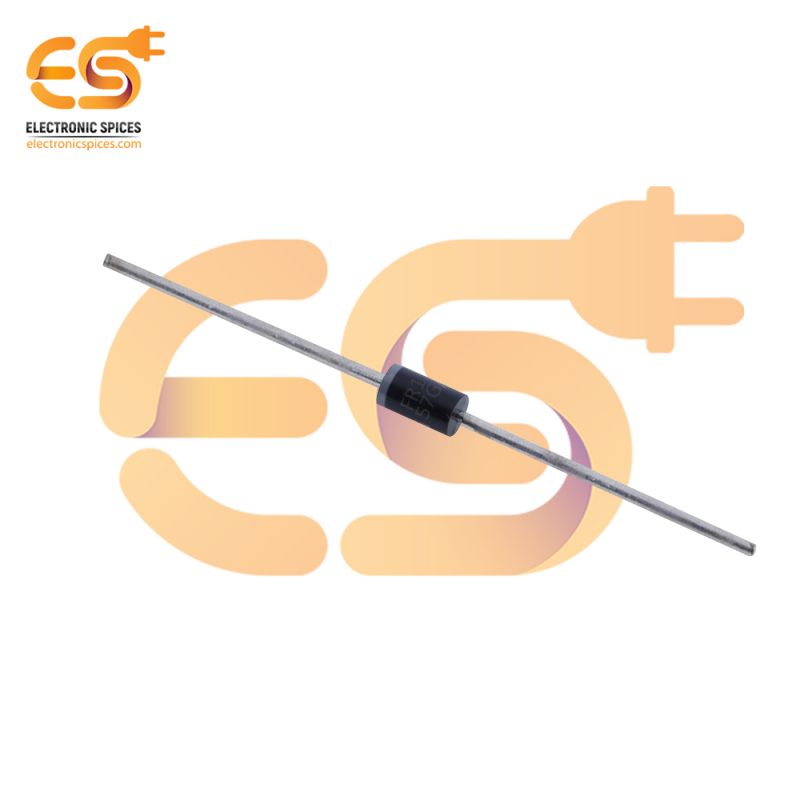

DO-15, FR157G 1000V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs
Specification
- Case : DO-15
- Maximum respective peak reverse voltage : 1000v
- Maximum average rectified current : 1.5A
- Maxim reverse current : 5.0µA
- Non-Repetitive Peak Forward Surge Current : 60A
- Maxim forward voltage : 1.3V
- Maximum reverse recovery time : 500ns
Available in Pack Of:
SKU: RL8541B
MRP Rs. 43.21
Rs.
29.00
(Incl. Tax)
Rs.
24.58
(+18% GST extra)
Rs. 24.58 / pack of 5 = Rs. 4.92 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
DO-15, FR157G 1000V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs
Product Description
The Do-15 Glass Passivated Fast Recovery Rectifier is a low forward voltage drop, high-speed rectifier. With a junction capacitance of less than one picofarad, this rectifier is suitable for use in situations where a quick and dependable rectifier is needed. Fast recovery rectifiers in the DO-15 series are intended for use in high-frequency power supplies. The DO-15 series was created with little reverse leakage and a high on-state voltage in mind.
Features
- High Current to Small Size
- High Current Capability
- Low Forward Voltage Drop
- Low Leakage
- High Reliability
