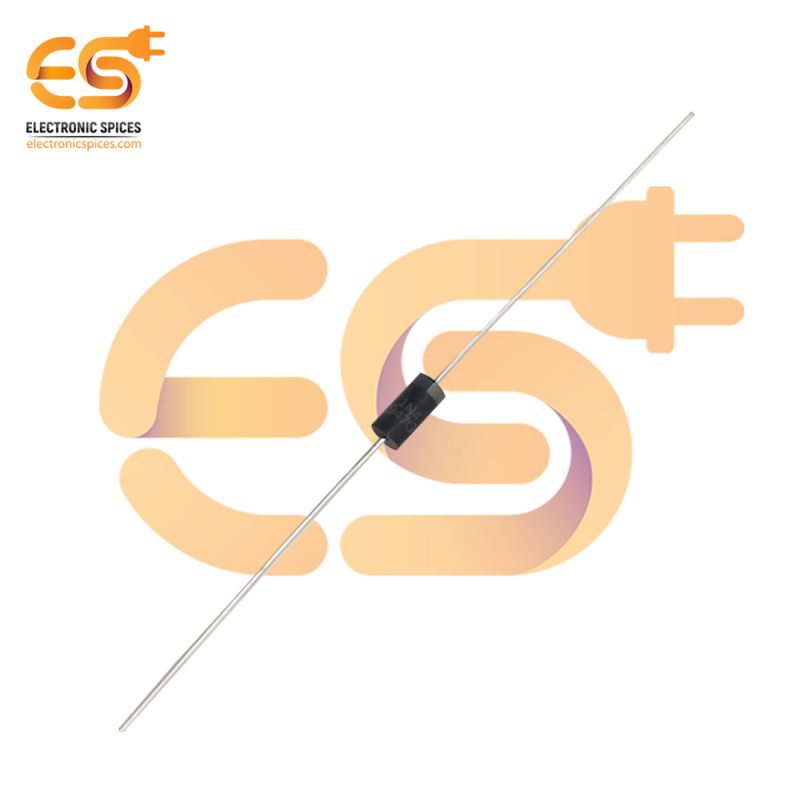

DO-41, 1N4947G 800V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs
Specification
- Case : DO-41
- Maximum respective peak reverse voltage : 800v
- Maximum average rectified current : 1.0A
- Maxim reverse current : 5.0µA
- Non-Repetitive Peak Forward Surge Current : 30A
- Maxim forward voltage : 1.3V
- Maximum reverse recovery time : 250ns
SKU: MW8541B
DO-41, 1N4947G 800V Glass Passivated Fast Recovery Rectifiers Diode pack of 5pcs
Product Description
The package contains five diodes for glass-passivated fast recovery rectifiers (1N4947G, 800V).Electrical components called rectifiers only permit current to flow in one direction. Numerous electrical applications, such as solar power panels, inverters, and motors, require these components. Because of its low capacitance, high current carrying capacity, and low forward voltage drop, these diodes are the best option for power supply rectification. When a low reverse leakage current is needed in high-voltage applications like circuit breakers, these devices work exceptionally well. They are made to enable quick recovery for control systems and high-voltage power supplies. Your high-current projects will benefit greatly from these high-voltage diodes. They have a quick recovery time and are composed of glass passivated junctions. This package has a temperature range of -55°C to +125°C. The glass passivated fast recovery rectifier is a special type of diode designed to provide fast response and high efficiency with a low reverse recovery time.
Features
- High Current to Small Size
- High Current Capability
- Low Forward Voltage Drop
- Low Leakage
- High Reliability
