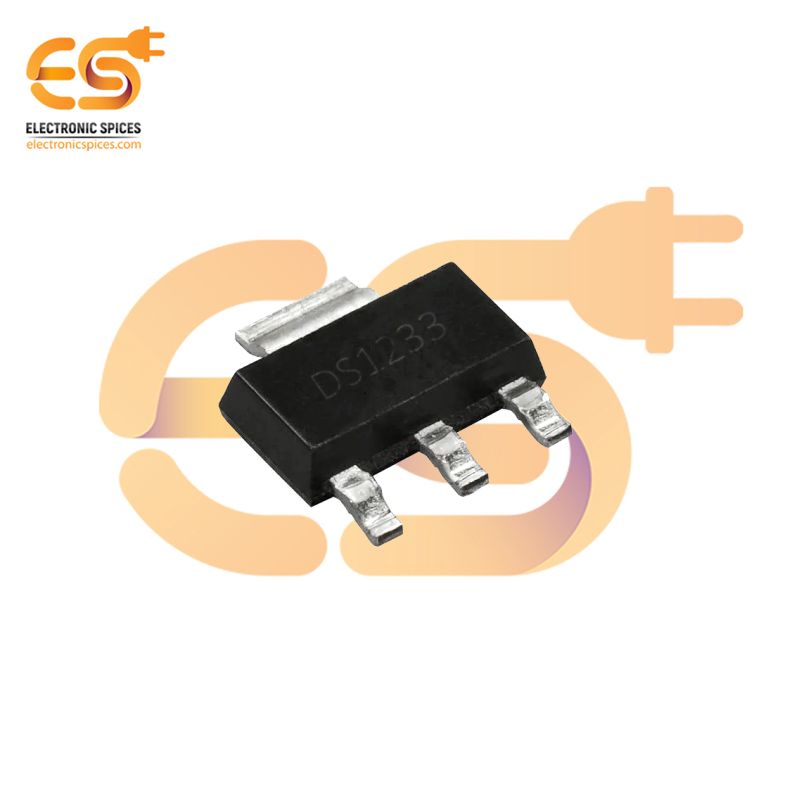

DS1233 Supervisor Open Drain or Open Collector 1 Channel SMD IC SOT-223-4 (3 Leads + Tab)

DS1233 Supervisor Open Drain or Open Collector 1 Channel SMD IC SOT-223-4 (3 Leads + Tab)

The DS1233 Supervisor IC is a compact, reliable system monitor designed to ensure proper system operation by monitoring supply voltages and providing a reset signal during power-up, power-down, or voltage irregularities. Housed in a SOT-223-4 package (featuring 3 leads and a grounding tab), this IC is well-suited for space-constrained designs while offering robust functionality. The DS1233 monitors a single voltage channel and includes an open-drain or open-collector output, allowing it to be easily integrated with other logic devices. This output remains active during under-voltage conditions, ensuring the system is held in reset until the power supply stabilizes at a safe operating voltage. This prevents erratic system behavior or data corruption during power fluctuations. Key features include a fixed voltage threshold, precision voltage monitoring, and a built-in time delay to allow the system to stabilize before exiting the reset state. With its low power consumption and wide operating temperature range, the DS1233 is ideal for battery-operated devices, embedded systems, and industrial controls.

Features:-

• High-Speed Performance
• Low Power Consumption
• Wide Operating Voltage Range
