Specification:-
- Package: SOIC16 (0.295", 7.50mm)
- Number of pins: 16 pin
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 4.5 V
- Supply Voltage-Nom (Vsup): 5 V
- Operating Temperature: 0°C ~ 70°C
- Terminal Position: DUAL
- Application: Battery Management
SKU: SF8470A

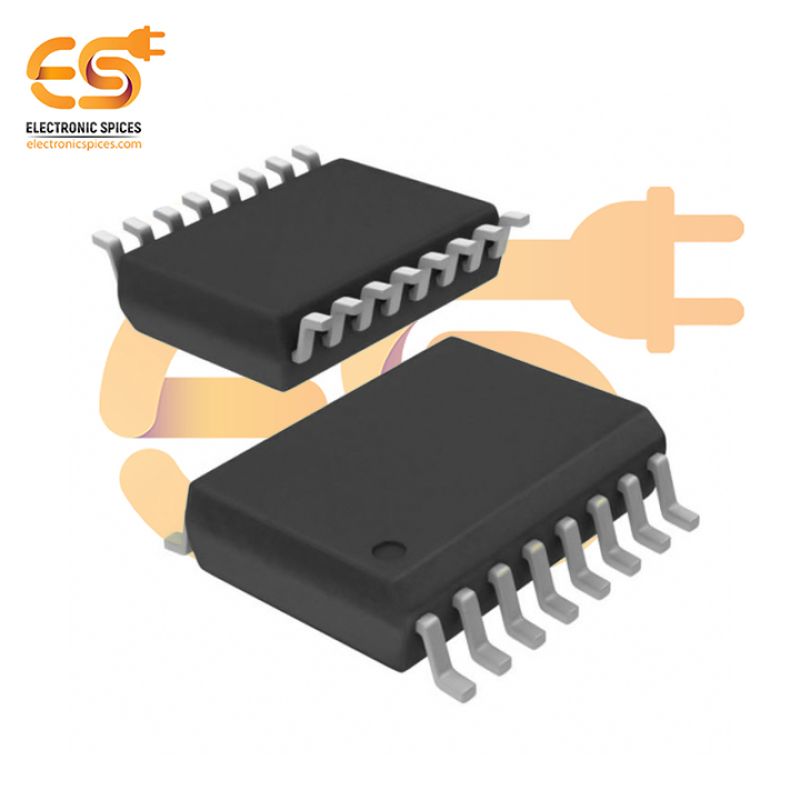

DS1259S Battery Power Management IC 16-SOIC
The DS1259S is a Battery Power Management IC designed for efficient and reliable power control in applications requiring seamless switching between primary power and battery backup. Packaged in a compact 16-pin SOIC (Small Outline Integrated Circuit), this IC is ideal for space-constrained designs in systems requiring dependable power management. The DS1259S features advanced power-switching circuitry to ensure the uninterrupted operation of devices during power outages or fluctuations. It automatically detects and transitions between primary power and backup battery sources, minimizing downtime and preserving data integrity in critical systems. This functionality makes it particularly suitable for use in real-time clocks, non-volatile RAM modules, and other memory-retention applications. Key features include low power consumption, an extended operating voltage range, and built-in protection mechanisms to safeguard against overvoltage and overcurrent conditions. The device supports a variety of battery chemistries, adding flexibility to system designs. Its small form factor and straightforward pin configuration enable easy integration into existing or new designs.
Features:-
- Automatic Power Switching
- Battery Chemistry Compatibility
- High-Speed Performance
- Low Power Consumption
- Wide Operating Voltage Range
