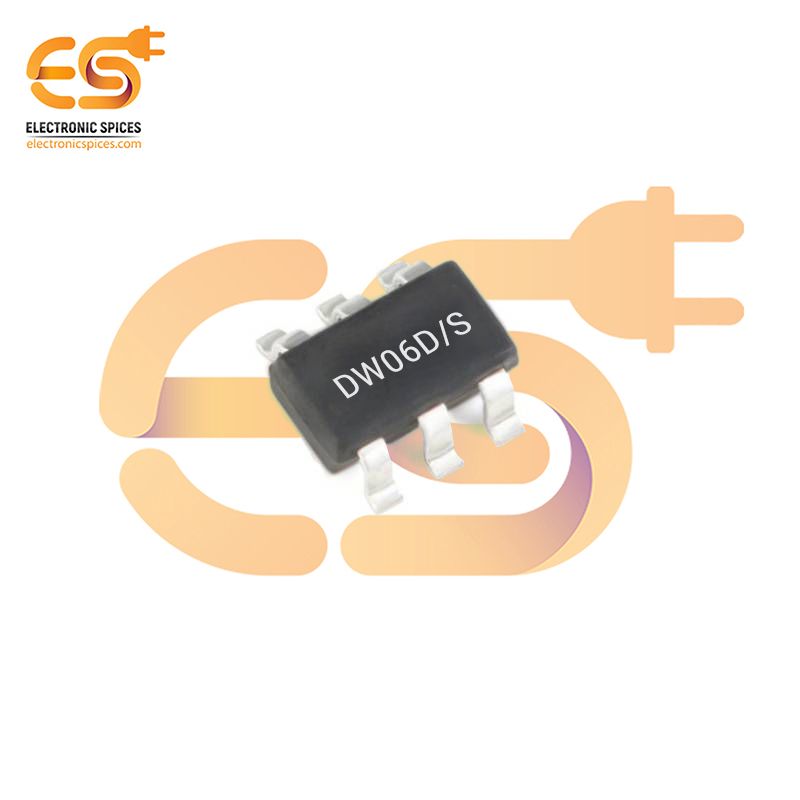

DW06D/S 2-in-1 Lithium Battery Protection IC SOT-23-6
Specification:-
- Package: SOT-23-6
- High-precision voltage detection
- Voltage Thresholds: Overcharge at 4.25V ± 0.05V, over-discharge at 2.50V ± 0.10V.
- Low quiescent current consumption: normal operating current 3.8uA
- Low Power Consumption
SKU: HQ5403A
DW06D/S 2-in-1 Lithium Battery Protection IC SOT-23-6
The DW06D/S is a highly efficient and compact 2-in-1 lithium battery protection IC designed to safeguard single-cell lithium-ion or lithium-polymer batteries. Encased in a small SOT-23-6 package, this IC integrates both overcharge and over-discharge protection circuits, making it an essential component for reliable battery management. Its advanced features ensure the safety, stability, and extended lifespan of lithium batteries in portable electronic devices. The IC provides accurate overcharge protection, cutting off the charging circuit when the battery voltage exceeds a preset threshold, typically around 4.25V ± 0.05V. Similarly, it offers over-discharge protection by disconnecting the load if the voltage drops below approximately 2.50V ± 0.10V, preventing battery damage. Additionally, the DW06D/S incorporates overcurrent protection to safeguard against excessive discharge currents or short-circuit conditions, ensuring system safety. Its low standby current minimizes power loss, making it highly energy-efficient. The DW06D/S is widely used in compact battery-powered devices such as smartphones, Bluetooth headsets, power banks, and other portable electronics, offering a reliable solution for lithium battery protection.
Feature:-
- Low Power Consumption
- Prevents excessive discharge currents and short circuits.
- Ideal for smartphones, power banks, and portable electronics
