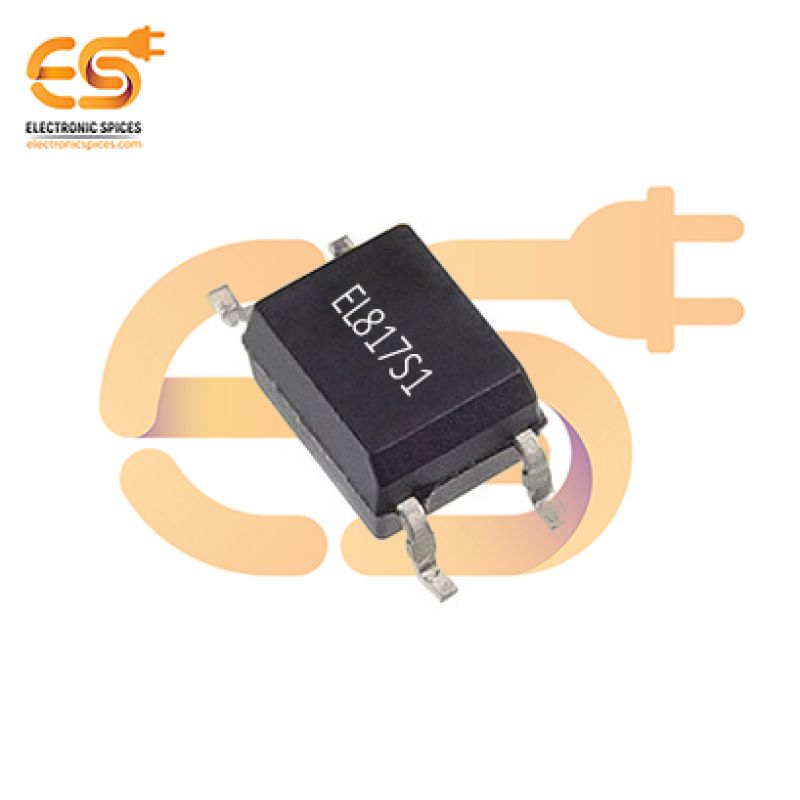

EL817S1(C)(TU)-F Output 5000Vrms 1 Channel Opto-isolator SMD Transistor 4-PDIP
Specification:-
- Package/Case: SMD4 Gull Wing
- Isolation Voltage: 5000 Vrms
- Rise / Fall Time (Typ): 4us / 3us
- Voltage: Forward (Vf) (Typ): 1.2V
- Voltage: Output (Max): 35V
- Current: DC Forward (If) (Max): 60mA
- Current: Output / Channel: 50mA
- Output Type: Transistor
SKU: JI8541A
EL817S1(C)(TU)-F Output 5000Vrms 1 Channel Opto-isolator SMD Transistor 4-PDIP
The EL817S1(C)(TU)-F Output 5000Vrms 1 Channel Opto-isolator SMD Transistor 4-PDIP is a compact, high-performance optoelectronic component engineered for isolating and transmitting electrical signals between two distinct circuits while maintaining complete electrical separation. Designed for surface mount applications, this opto-isolator features a single-channel configuration with a robust 5000Vrms isolation rating, ensuring exceptional safety and protection against high-voltage transients and electrical noise. Inside the EL817S1(C)(TU)-F, an infrared LED serves as the input, emitting light that is detected by the phototransistor on the output side. This design allows for seamless signal transfer without direct electrical connection, eliminating risks associated with ground loops or interference. Packaged in a standard 4-PDIP form factor, it ensures compatibility with automated assembly processes and simplifies circuit integration. The device is ideal for applications such as power supply feedback loops, signal isolation in industrial control systems, and microcontroller interfacing in communication systems. It operates reliably across a wide range of conditions, making it suitable for demanding environments.
Applications:-
- Microcontroller interface
- Telecommunication
- Industrial Automation
- Switch Mode Power Supplies
