Specification:-
- Model: VRB2424YMD-10WR3
- Input Voltage: 24V DC
- Output Voltage: 24V DC
- Output Power: 10W
- Output Current: 416mA
- Isolation Voltage: 1.5kV DC
- Operating Temperature: -40°C to +85°C
SKU: XG3504A

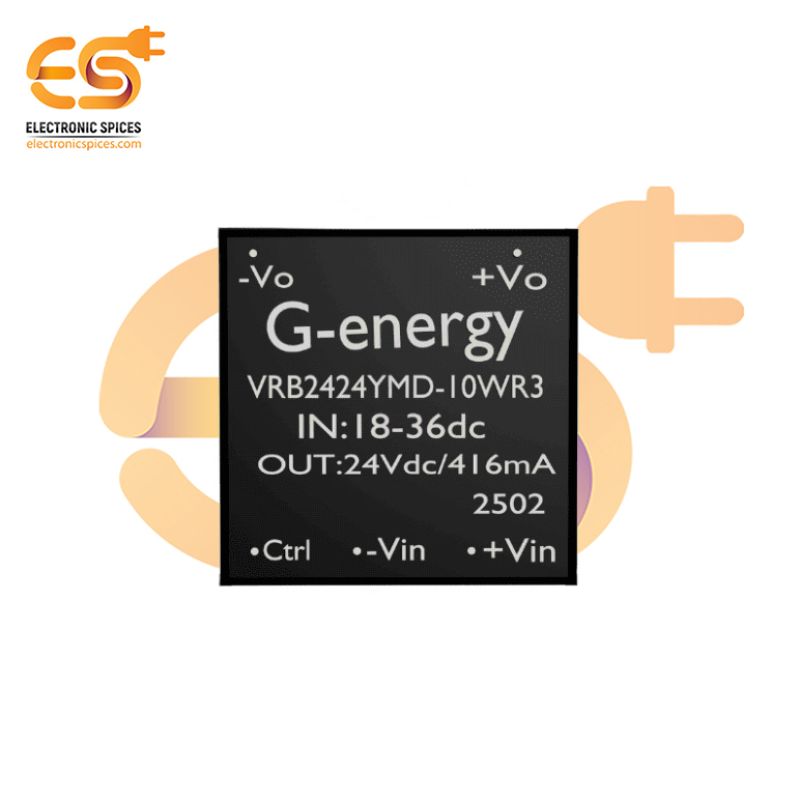

G-energy VRB2424YMD-10WR3 24V to 24V DC/DC 10W Converter
The G-energy VRB2424YMD-10WR3 is a compact and efficient 10W isolated DC-DC converter module designed to convert a 24V DC input (ranging from 18V to 36V) into a stable 24V DC output with a maximum current of 416mA. This module provides 1.5kV DC isolation between input and output, enhancing safety and minimizing noise interference. With an efficiency of up to 88%, it ensures effective energy conversion with reduced heat generation. Additional features include continuous short-circuit protection with automatic recovery and a remote On/Off control for flexible power management. Encased in a compact DIP package measuring approximately 25.4mm x 25.4mm x 11.7mm, it is suitable for space-constrained applications. The VRB2424YMD-10WR3 operates reliably over a wide temperature range from -40°C to +85°C, making it ideal for industrial control systems, instrumentation, and telecommunications equipment requiring stable and isolated 24V power conversion.
Feature:-
- Wide Input Voltage Range
- Short-Circuit Protection
- High Efficiency
- High Isolation Voltage
- Operating Temperature Range
