Specification:-
- Model: WRB1212S-3WR2
- Product Type: DC-DC Converter Module
- Input Voltage: 12V DC
- Output Voltage: 12V DC
- Output Power: 3W
- Output Current: 250mA
- Isolation Voltage: 1500V DC
- Operating Temperature: -40°C to +85°C
SKU: HA3504A

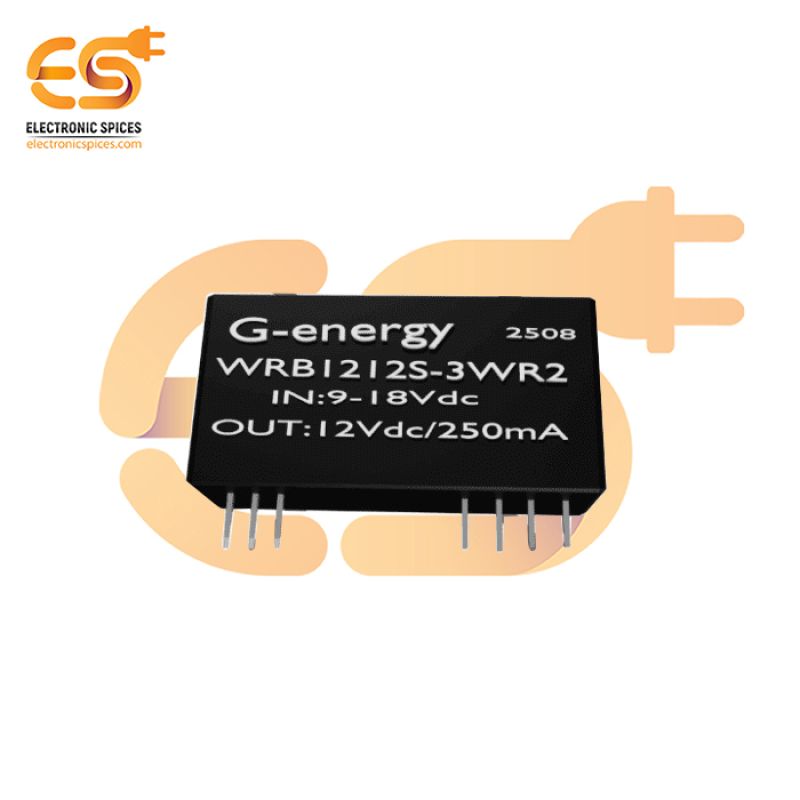

G-energy WRB1212S-3WR2 12V to 12V DC/DC 3W Buck Converter Isolated Module
The G-energy WRB1212S-3WR2 is a compact, isolated 3W DC-DC converter module designed to convert a 12V DC input to a stable 12V DC output, delivering up to 250mA of current. Operating within an input voltage range of 9V to 18V DC, it accommodates standard 12V power systems. The module provides 1.5kV DC isolation between input and output, enhancing safety and minimizing noise interference. With an efficiency of up to 80%, it ensures effective energy conversion with reduced heat generation. Additional features include continuous short-circuit protection with automatic recovery and a remote On/Off control for flexible power management. Encased in a compact SIP-8 package measuring approximately 22.0mm x 9.5mm x 12.0mm, it is suitable for space-constrained applications. The WRB1212S-3WR2 operates reliably over a wide temperature range from -40°C to +85°C, making it ideal for industrial control systems, instrumentation, and telecommunications equipment requiring stable and isolated 12V power conversion.
Feature:-
- Wide Input Voltage Range
- Short-Circuit Protection
- High Efficiency
- High Isolation Voltage
- Operating Temperature Range
