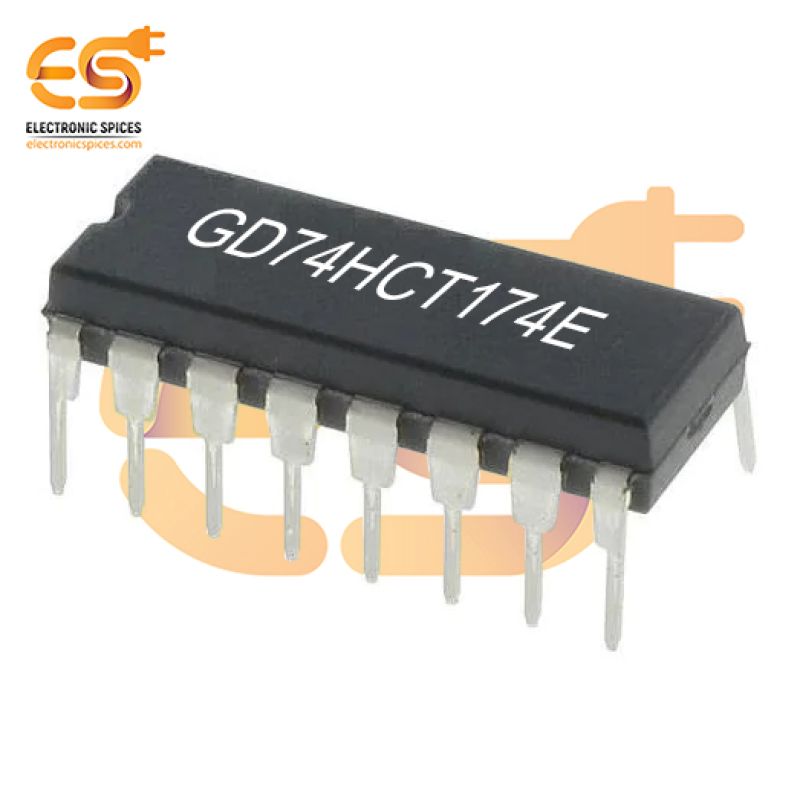

GD74HCT174E Flip Flop 1-Element D-Type 6-Bit Logic IC Positive Edge 16-PDIP

GD74HCT174E Flip Flop 1-Element D-Type 6-Bit Logic IC Positive Edge 16-PDIP

The GD74HCT174E is a 6-bit D-type flip-flop logic IC with a single element, designed for use in digital logic systems requiring edge-triggered data storage and synchronization. Operating on a positive edge-triggered clock input, this IC ensures precise and reliable data transfer at every clock cycle. The 16-PDIP package provides a convenient through-hole mounting solution for robust and secure placement on PCBs. Each of the six flip-flops in the GD74HCT174E has its own data (D) input and Q output, with a shared clock and asynchronous clear (reset) input. The clear function resets all outputs to a low state, offering enhanced control and initialization capabilities. The IC is compatible with TTL (Transistor-Transistor Logic) signal levels, making it suitable for interfacing with a wide range of digital circuits. With low power consumption and high noise immunity, it is well-suited for clocked storage, data latching, and sequencing applications.

Feature:-

• 6-bit D-type flip-flop with individual data inputs.
• Resets all outputs to a low state.
• Positive edge-triggered clock for precise synchronization
• High-speed CMOS technology with TTL-compatible inputs.
