Specification:-
- Package: DIP 8-Pin
- Type: DPDT (Double Pole Double Throw) relay
- Coil Operate Voltage (DC): 6.75 V
- Coil Release Voltage (DC): 0.9 V
- Coil Resistance : 405 Ω
- Coil Voltage: (DC)-Max 13.5 V
- Coil Voltage: No. 9 V
- Contact Resistance 100 mΩ
- Contact Voltage: (AC)-Max 120 V
- Contact Voltage: (DC)-Max 24 V
SKU: XL8539A

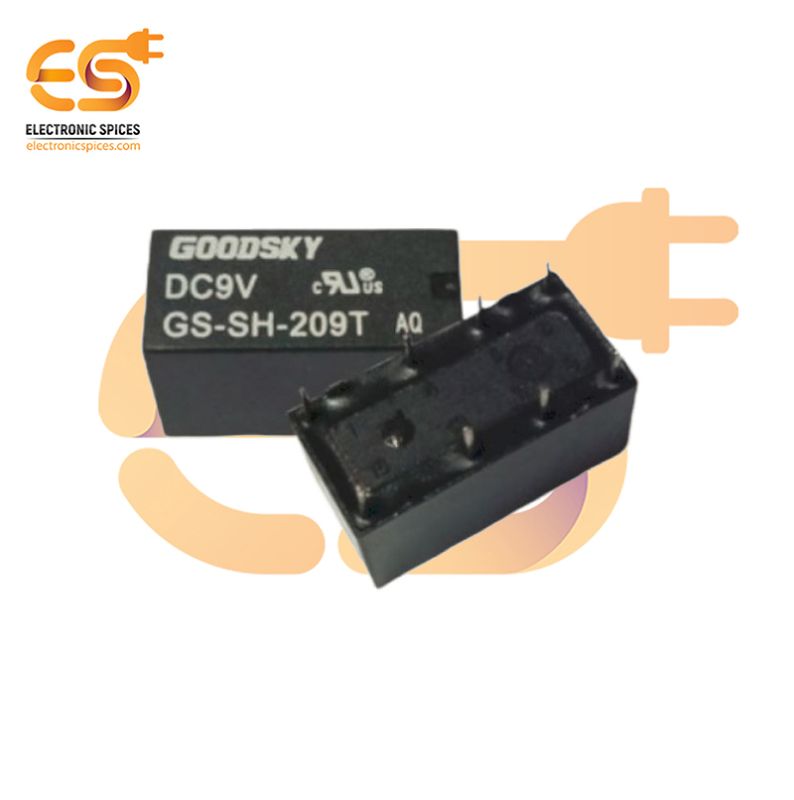

GS-SH-209T DPDT 9V 2A Through Hole 8-Pin Telecom Relay
The GS-SH-209T is a high-performance DPDT (Double Pole Double Throw) telecom relay designed for precision switching in communication and control systems. It operates at a nominal coil voltage of 9V DC and supports a maximum load current of 2A, making it ideal for low-power signal and load switching. With an 8-pin through-hole design, the relay is easy to integrate into PCB layouts, ensuring stable and reliable connections. Encased in a compact, durable housing, it provides excellent resistance to environmental factors, such as dust and moisture, while ensuring long-lasting performance. This relay is engineered for telecom applications, offering fast switching speeds and low contact resistance for clear and accurate signal transmission. Its DPDT configuration allows it to control two independent circuits simultaneously, providing versatility for various switching scenarios. With its robust construction and reliable operation, the GS-SH-209T is perfect for applications in telecommunications, industrial automation, instrumentation, and consumer electronics.
Features:-
- 8-pin through-hole for easy PCB mounting
- Space-efficient housing suitable for telecom equipment
- Ensures quick and precise signal transmission
- Optimized for clear and accurate signals
- Resistant to dust, moisture, and mechanical wear
