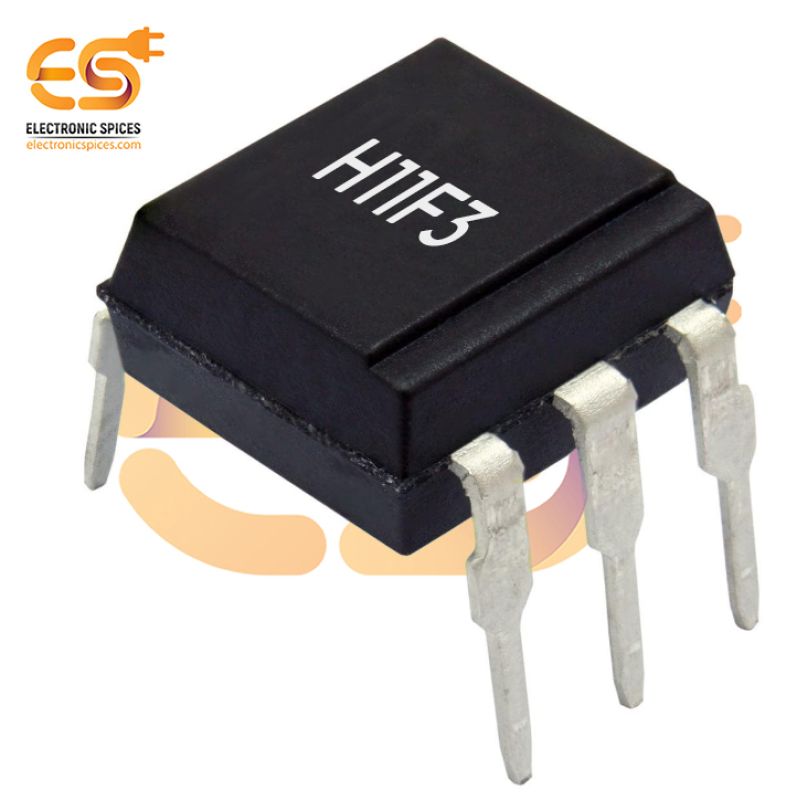

H11F3 Optoisolator MOSFET Output 7500Vpk 1-Channel 6-PDIP

H11F3 Optoisolator MOSFET Output 7500Vpk 1-Channel 6-PDIP

The H11F3 is a single-channel optoisolator with a MOSFET output, designed for high-voltage isolation between different stages of an electronic circuit. It features an isolation voltage rating of 7500V peak, providing robust protection against voltage spikes and transients between input and output sections. This component is ideal for applications where high voltage isolation is crucial, such as in power supplies, communication systems, and industrial control circuits. The H11F3 integrates an LED-based input and a MOSFET output, providing the advantage of a low on-state resistance for faster switching and more efficient power handling compared to traditional phototransistor outputs. The device is housed in a 6-PDIP (Plastic Dual In-line Package), which allows for easy integration into PCB designs and offers durability for through-hole mounting. With its low input current and high-speed switching capabilities, the H11F3 is suitable for controlling high-voltage loads or providing feedback and protection in power systems. The MOSFET output ensures the optoisolator can drive higher current loads, while the 7500V peak isolation guarantees effective separation of circuits, enhancing safety and performance in demanding environments.

Feature:-

• High Voltage Isolation
• Single-Channel Design
• Low Input Current
• Fast Switching Speed
