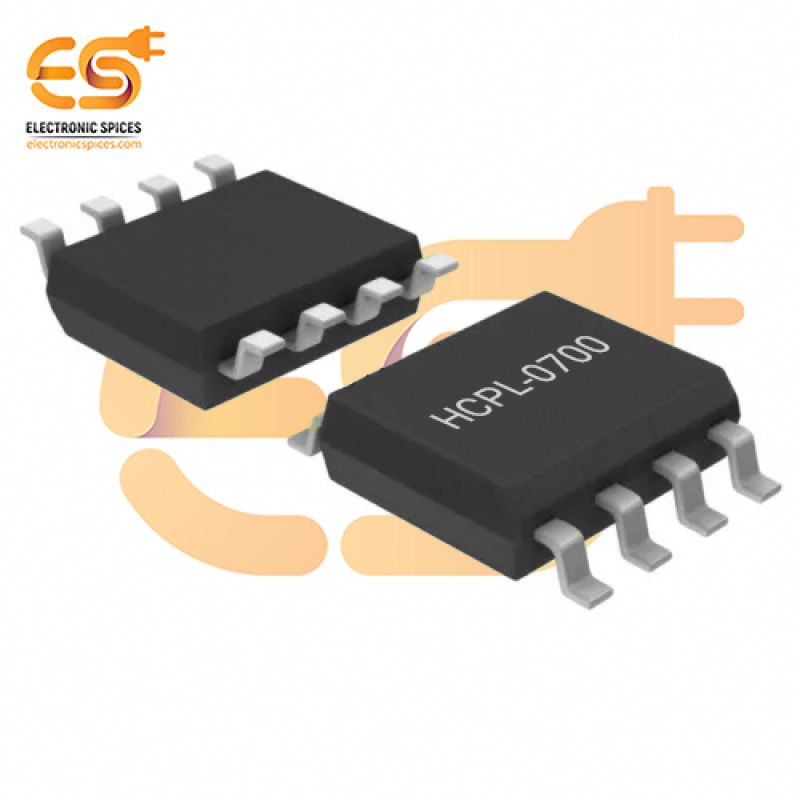

HCPL-0700 3750Vrms 1 Channel Optoisolator Darlington with Base Output Output 8-SOIC

HCPL-0700 3750Vrms 1 Channel Optoisolator Darlington with Base Output Output 8-SOIC

The HCPL-0700 is a 1-channel optoisolator with a Darlington transistor with base output configuration, offering 3750Vrms of isolation voltage, making it ideal for high-voltage isolation applications in electronic systems. The Darlington output is known for providing high current gain, allowing it to drive higher currents with minimal power loss, which is especially beneficial when controlling power devices or circuits that require larger loads. The base output version of the Darlington transistor ensures the device is easily integrated into a variety of control circuits, providing reliable operation in industrial and power electronics applications. This optoisolator's 3750Vrms isolation voltage guarantees excellent separation between the input and output circuits, effectively protecting the low-voltage control side from potentially harmful high-voltage spikes, noise, or transient voltages that could damage sensitive components. The HCPL-0700 is packaged in an 8-SOIC form factor, which is compact and suitable for surface-mount applications, making it an excellent choice for automated assembly in high-volume production environments.

Features:-

• Single-channel optoisolator for controlling one signal path.
• 8-SOIC surface-mount package, suitable for automated assembly.
• Low power consumption with high current driving capability.
• Darlington transistor with base output, providing high current gain.
