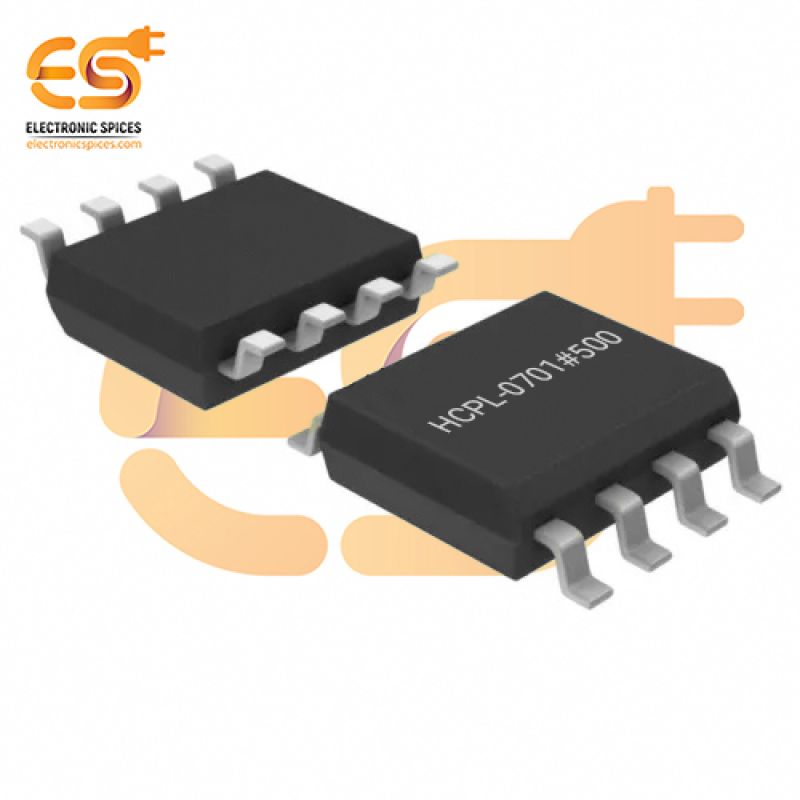

HCPL-0701#500 3750Vrms 1 Channel Optoisolator Darlington with Base Output Output 8-SOIC

HCPL-0701#500 3750Vrms 1 Channel Optoisolator Darlington with Base Output Output 8-SOIC

The HCPL-0701#500 is a 1-channel optoisolator featuring a Darlington transistor with base output configuration, providing 3750Vrms of electrical isolation. This optoisolator is designed to offer superior signal isolation between high and low voltage circuits, protecting sensitive low-voltage components from potentially harmful high-voltage spikes, transients, and noise. The Darlington output is particularly advantageous for applications that require high current gain, enabling it to drive larger currents while maintaining minimal power loss. With a 3750Vrms isolation voltage, the HCPL-0701#500 ensures robust isolation for applications operating in harsh electrical environments. The base output configuration allows it to be easily integrated into a variety of control and power circuits, offering both reliability and flexibility in signal transmission. The device is housed in an 8-SOIC package, making it compact and suitable for automated surface-mount assembly, providing ease of integration into high-volume production systems.

Features:-

• Single-channel optoisolator for controlling one signal path.
• 8-SOIC surface-mount package, suitable for automated assembly.
• Low power consumption with high current driving capability.
• Darlington transistor with base output, providing high current gain.
