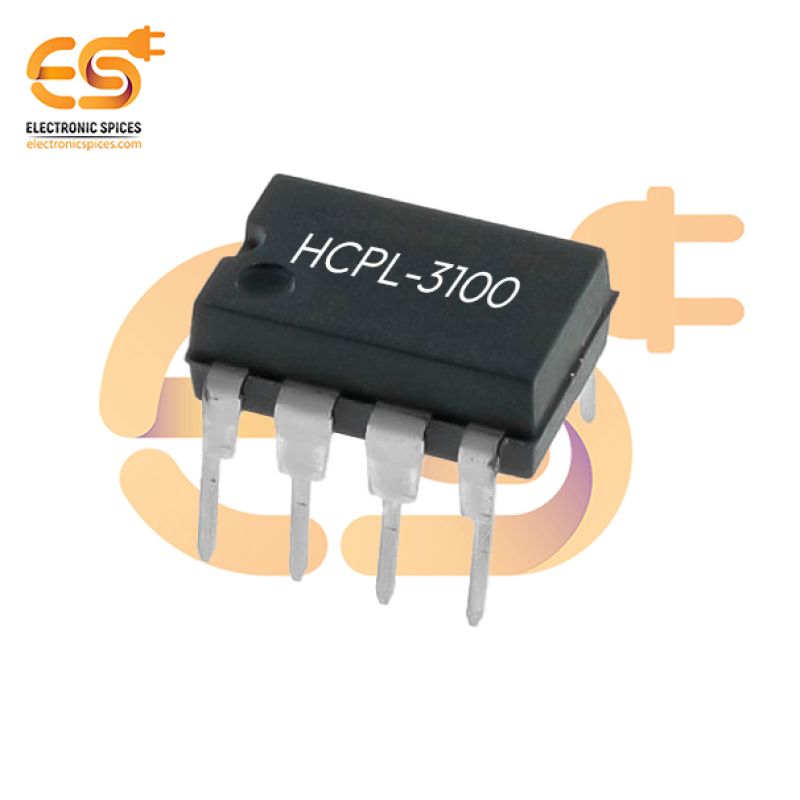

HCPL-3100 600mA 5000Vrms 1-Channel Gate Driver Optical Isolators Coupling 8-SMD Gull Wing

HCPL-3100 600mA 5000Vrms 1-Channel Gate Driver Optical Isolators Coupling 8-SMD Gull Wing

The HCPL-3100 is a 1-channel gate driver optical isolator, designed to provide electrical isolation between the low-voltage control circuit and high-power switching devices, such as transistors or MOSFETs. This component is a vital part of circuits requiring precise control of high-power devices while protecting sensitive electronics from potentially harmful voltage spikes or surges. The HCPL-3100 utilizes optical isolation technology to transmit control signals through light rather than direct electrical connections, ensuring safety and reducing the risk of noise or transient voltage interference. With a 5000Vrms isolation voltage, the HCPL-3100 can effectively isolate the input and output stages of circuits, making it ideal for high-voltage applications such as motor drives, power inverters, and industrial equipment. The device can handle 600mA output current, providing sufficient power to drive the gate of MOSFETs or IGBTs, enabling fast switching with minimal delay. This optical isolator comes in an 8-SMD Gull Wing package, which is compact and suitable for surface-mount applications, making it compatible with automated manufacturing processes. The HCPL-3100 helps prevent damage to control circuitry and enhances the overall reliability and performance of the system.

Features:-

• Capable of driving 600mA output current.
• 5000Vrms for robust isolation between control and power stages.
• 8-SMD Gull Wing, surface-mount package for automated assembly.
• Provides low propagation delay and high-speed switching.
