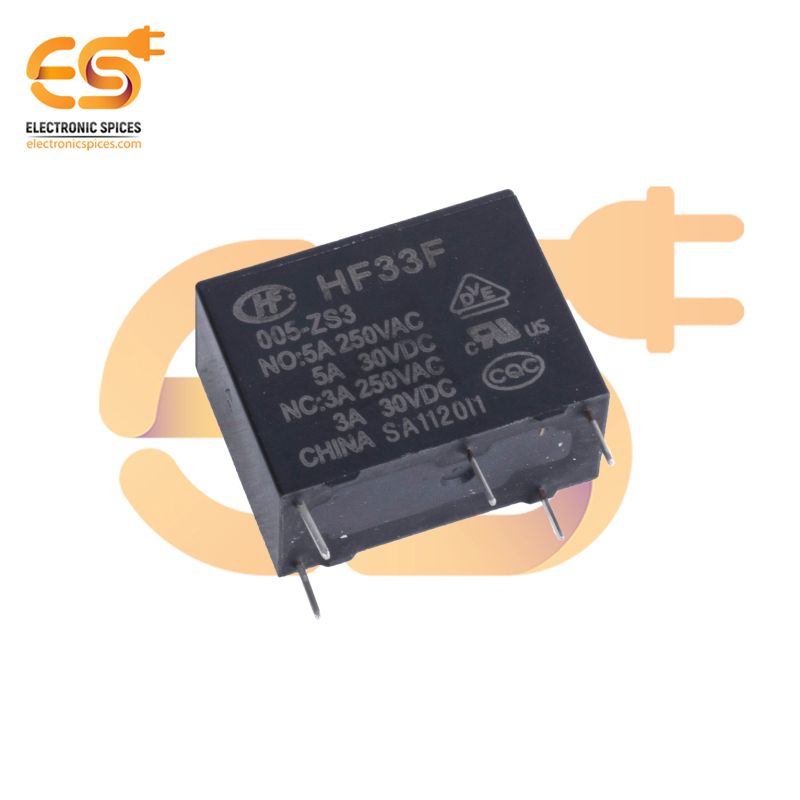

HF33F/005-Z3 Through Hole 5-Pin 5V 10A SPST Miniature Power Relay
Specification:-
- Package: DIP 5-Pin
- Coil Voltage: 5V DC
- Switching Current: 10A
- Contact Voltage : 30V DC ~ 5A
- Contact Voltage: 250V AC ~3A
- Coil Consumed Power : 450 mW
- Contact arrangement: 1 Form C
- Contact Configuration: SPST (Single Pole Single Throw)
SKU: PK8536A
HF33F/005-Z3 Through Hole 5-Pin 5V 10A SPST Miniature Power Relay
A small and dependable SPST (Single Pole Single Throw) miniature power relay, the HF33F/005-Z3 is made to manage medium power loads with a nominal voltage of 5V and a current rating of up to 10A. With its straightforward yet effective power-switching solution, this relay is ideal for use in control circuits, power supplies, automobile systems, and household appliances. Easy integration into printed circuit boards (PCBs) for stable and secure mounting is ensured by the 5-pin through-hole design. Because of its high dielectric strength, the relay offers superior insulation between the coil and contacts, ensuring safety when switching. Even in demanding environments, its long lifespan and dependable performance are guaranteed by its sturdy construction. The HF33F/005-Z3 is adaptable to a variety of operating conditions due to its wide temperature range operation design.
Features:-
- Low Power Consumption
- Suitable for various environmental conditions.
- Designed for long-term use with frequent switching.
- Easy and secure mounting onto PCBs.
- It provides insulation between the coil and contacts for safe operation.
