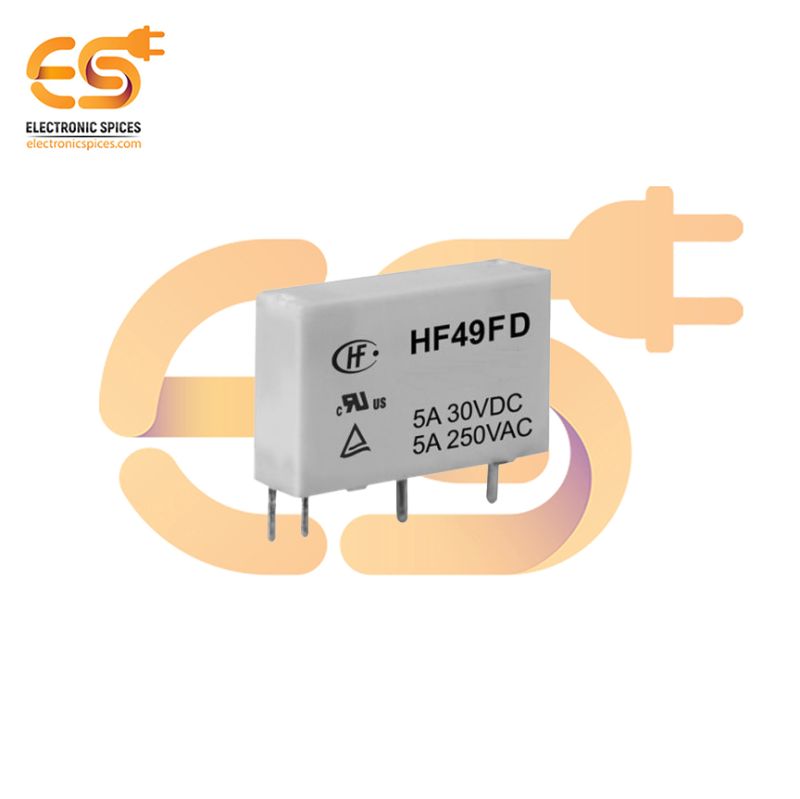

HF49FD/024-1H22GFL Through Hole 4-Pin 24V 5A SPST Miniature Power Relay
Specification:-
- Package: DIP 4-Pin
- Coil Voltage: 24VDC
- Switching Current: 5A
- Switching Voltage: 250V AC
- Switching Voltage: 30VDC
- Contact arrangement: 1 Form A
- Contact Configuration: SPST (Single Pole Single Throw)
SKU: DX8536A
HF49FD/024-1H22GFL Through Hole 4-Pin 24V 5A SPST Miniature Power Relay
The HF49FD/024-1H22GFL is a compact and efficient SPST (Single Pole Single Throw) miniature power relay, designed for applications requiring reliable switching of medium-power loads. Operating at a nominal voltage of 24V, this relay has a current handling capacity of up to 5A, making it suitable for use in control circuits, industrial equipment, home appliances, and consumer electronics. With a 4-pin through-hole configuration, this relay is easy to integrate into printed circuit boards (PCBs), providing a secure and stable connection. It features high dielectric strength, ensuring excellent insulation between the coil and contacts for safe operation. The HF49FD/024-1H22GFL is engineered for consistent performance across a wide temperature range, making it a dependable choice for diverse operating environments.
Features:-
- Easy through-hole mounting for PCB applications.
- Designed for stable performance in varying conditions.
- Ensures long mechanical and electrical lifespan for frequent switching.
- Provides safe and reliable insulation between the coil and contacts.
