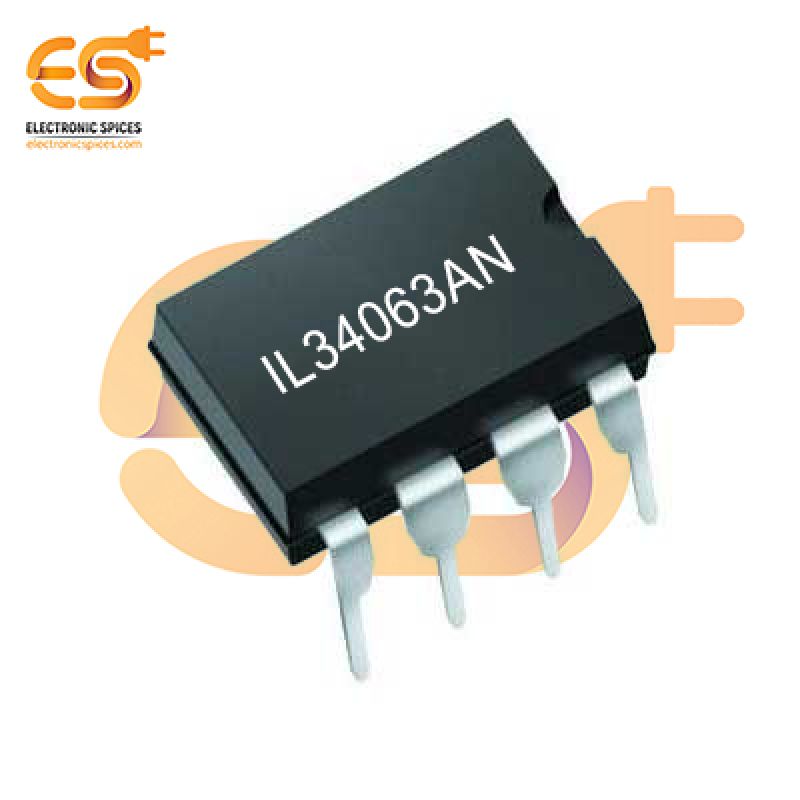

IL34063AN Supervisor Open Drain or Open Collector 1-Channel TO-92
Specification:-
- Package: PDIP8 (0.300", 7.62mm)
- Operation from 3.0 V to 40 V Input
- Output Switch Current to 1.5 A
- Output Voltage Adjustable
- Frequency Operation to 100 kHz
- Power Supply Voltage VCC 40 Vdc
- Comparator Input Voltage Range VIR -0.3 to +40 Vdc
- Switch Collector Voltage VC(switch) 40 Vdc
SKU: OB8410A
IL34063AN Supervisor Open Drain or Open Collector 1-Channel TO-92
The IL34063AN is a versatile, single-channel switching voltage regulator IC designed for DC-DC conversion applications. It integrates a high-efficiency regulator circuit capable of stepping up, stepping down, or inverting input voltages, making it suitable for a wide variety of power management tasks. Packaged in a compact TO-92-3 form factor, this IC is ideal for space-constrained designs that require a cost-effective and flexible power solution. The IL34063AN features an open drain or open collector output and offers internal functions such as a voltage reference, oscillator, and current limiting. With an adjustable output voltage and support for input voltages ranging from 3V to 40V, this IC is widely used in power supplies for embedded systems, battery-powered devices, and industrial equipment.
Features:-
- Current Limiting Protection:
- Adjustable via external resistors.
- Reduces the need for additional components.
- Simple design with minimal external components.
