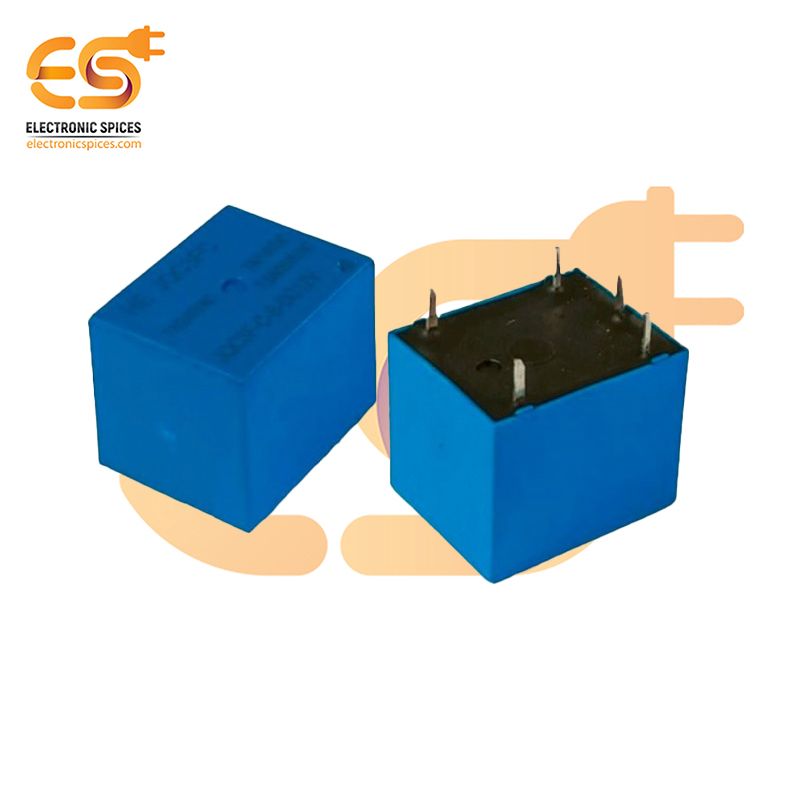

JQC3F-C-S-10-DC 6V 7A Through Hole SPDT 5-Pin Sugarcube Relay

JQC3F-C-S-10-DC 6V 7A Through Hole SPDT 5-Pin Sugarcube Relay

The JQC3F-C-S-10-DC 6V is a 7A-rated SPDT (Single Pole Double Throw) relay designed for through-hole mounting, also known as a sugarcube relay due to its compact square shape. This relay operates with a 6V DC control voltage and is capable of handling a maximum current of 7A at 250VAC or 30VDC, making it suitable for switching both low- and high-power electrical loads in a variety of applications. The relay features a 5-pin configuration, including the common (C) pin, normally open (NO) pin, and normally closed (NC) pin, which allows the relay to switch between two different paths. The 6V DC activation voltage is used to energize the coil, which then closes the circuit between the common pin and the normally open contact, or opens the circuit when the normally closed contact is used. This relay is particularly valued for its compact design, providing an efficient way to switch power in space-constrained areas. It is commonly used in automated systems, home appliances, and industrial control circuits where reliable, high-current switching is required.

Applications:-

• Power switching for home appliances.
• Industrial control circuits.
• Signal routing in automotive and robotics systems.
• Consumer electronics with high-power requirements.
• Timing and relay control in automated systems.
