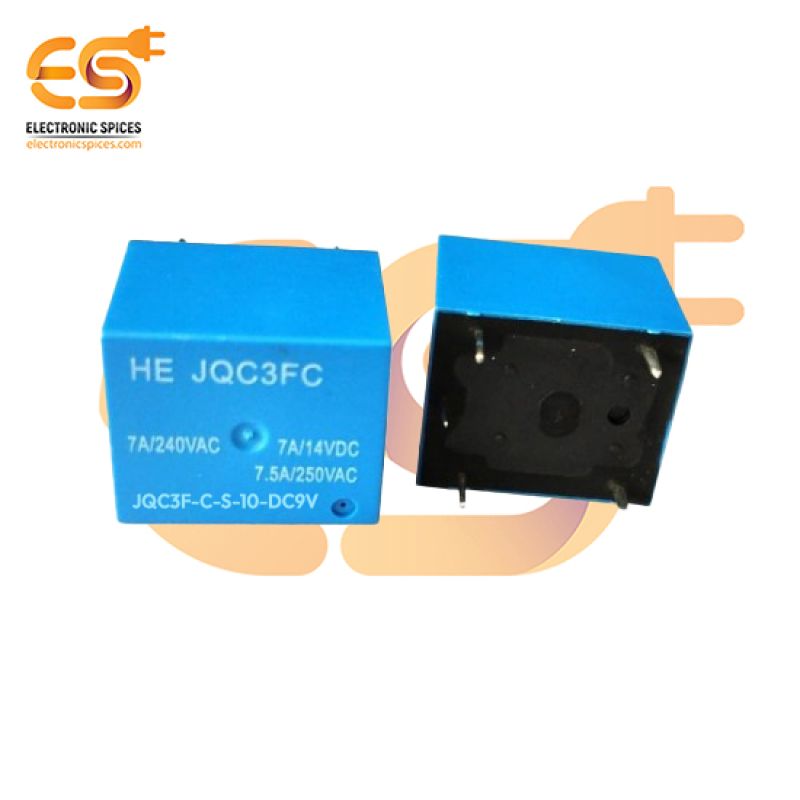

JQC3F-C-S-10-DC9V 7A Through Hole SPDT 5-Pin Sugarcube Relay

JQC3F-C-S-10-DC9V 7A Through Hole SPDT 5-Pin Sugarcube Relay

The JQC3F-C-S-10-DC9V is a 7A-rated SPDT (Single Pole Double Throw) relay, designed for through-hole mounting and commonly referred to as a sugarcube relay due to its compact, square shape. This relay operates with a 9V DC control voltage and is capable of handling a maximum current of 7A at 250VAC or 30VDC, making it suitable for controlling high-power electrical loads in various applications. The 5-pin configuration includes a common (C) pin, normally open (NO) pin, and normally closed (NC) pin, enabling the relay to switch between two distinct paths. When 9V DC is applied to the coil, the relay energizes and closes the contact between the common and normally open pins, or between the common and normally closed pins, depending on the desired switching function. This relay's compact size allows it to be used in applications where space is limited, providing an efficient and reliable solution for switching power. The JQC3F-C-S-10-DC9V is commonly found in automated systems, home appliances, industrial control circuits, and other applications requiring reliable switching.

Applications:-

• Power switching for home appliances.
• Industrial control circuits.
• Signal routing in automotive and robotics systems.
• Consumer electronics with high-power requirements.
• Timing and relay control in automated systems.
