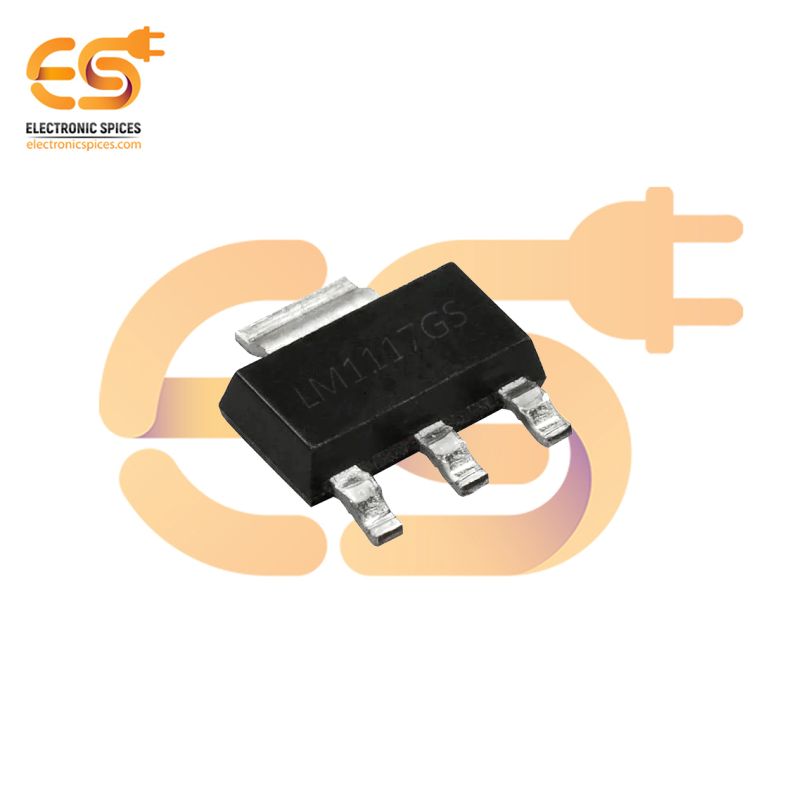

LM1117GS-5.0 1-Output 800mA Positive Fixed Linear Voltage Regulator IC SOT-223
Specification:-
- Package: SOT-223-4 (3 Leads + Tab) / TO-261-4 / TO-261AA
- Voltage - Input (Max): 20V
- Voltage - Output (Min/Fixed): 5V
- Voltage Dropout (Max): 1.3V @ 1A
- Current - Output: 1A
- Current - Quiescent (Iq): 10 mA
- Operating Temperature: -40°C ~ 125°C
SKU: OT8410A
LM1117GS-5.0 1-Output 800mA Positive Fixed Linear Voltage Regulator IC SOT-223
The LM1117GS-5.0 is a high-performance, positive fixed linear voltage regulator IC that provides a stable 5.0V output voltage with a maximum output current of 800mA. Packaged in a compact SOT-223 form factor, this regulator is ideal for applications requiring reliable and efficient voltage regulation in space-constrained designs. Featuring a low dropout voltage of approximately 1.1V at full load, the LM1117GS-5.0 ensures efficient operation even with low input-to-output voltage differentials. It is designed for high thermal performance and includes built-in protection mechanisms, such as current limiting and thermal shutdown, to enhance reliability and safeguard the regulator against overload and overheating. This makes it a suitable choice for powering microprocessors, low-voltage digital circuits, and general-purpose electronic devices.
Features:-
- Adjustable Output Voltage
- Low Dropout Voltage
- Suitable for PCB designs with limited space.
- Low quiescent current for energy efficiency.
- compact with excellent thermal performance.
