LM311MX General Purpose Comparator Open-Collector/Open-Emitter 8-SOIC
Specification:-
- Package/Case: SOIC14 (0.154", 3.90mm)
- Mounting Style: SMD/SMT
- Supply Voltage - Min: 5 V
- Supply Voltage - Max: 36 V
- Operating Supply Current: 5.1 mA
- Output Current per Channel: 8 mA
- Vos - Input Offset Voltage: 7.5 mV
- Ib - Input Bias Current: 250 nA
SKU: SW8641A

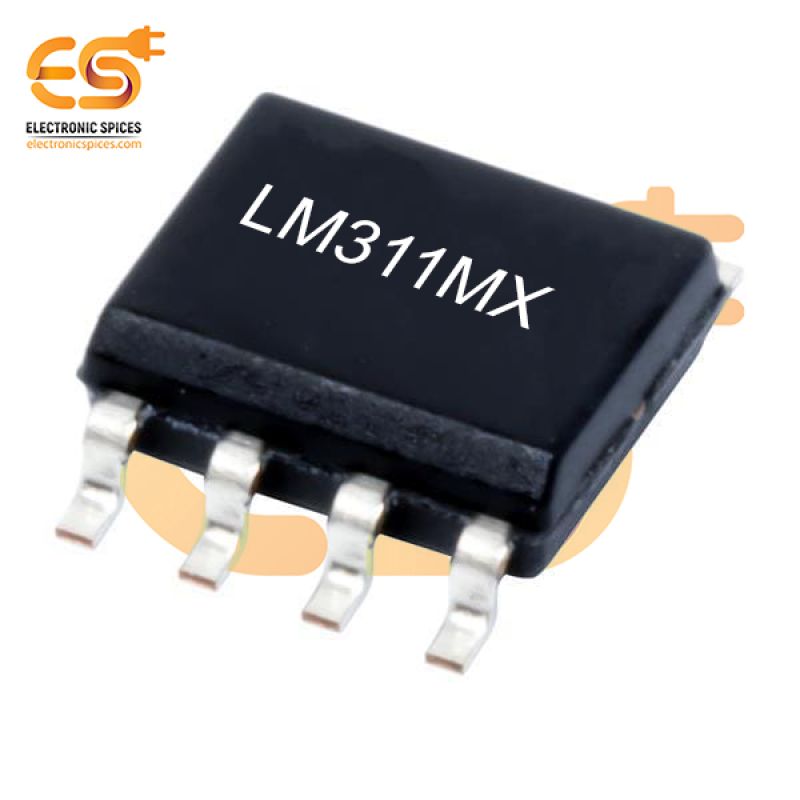

LM311MX General Purpose Comparator Open-Collector/Open-Emitter 8-SOIC
The LM311MX is a general-purpose comparator IC with open-collector and open-emitter outputs, designed for use in a wide range of voltage comparison applications. Housed in a compact 8-SOIC (Small Outline Integrated Circuit) package, it is ideal for modern, space-constrained electronic designs. This comparator offers a wide operating voltage range from +3V to +30V for single supplies or ±1.5V to ±15V for dual supplies, ensuring compatibility with both low and high-voltage systems. The LM311MX features high-speed operation, allowing it to respond quickly to input voltage changes, with a typical response time of 200 ns. Its open-collector output configuration enables flexible interfacing with different voltage levels or creating wired-AND logic functions.The LM311MX is equipped with differential inputs, capable of handling common-mode input voltages from 0V to Vcc - 1.5V, ensuring reliable performance even under varying input conditions. It is commonly used for zero-crossing detectors, voltage level sensing, Schmitt triggers, and oscillator circuits.
Applications:-
- Computer Circuits
- Automation Projects
- Comparator Circuits
