Specification:-
- Type: Enclosed Type
- Output Voltage: 5V
- Output Current: 18A
- Output Power: 90W
- Input Voltage: 100V/240V by switch
- IP Level: Non-Waterproof
SKU: SS8504A

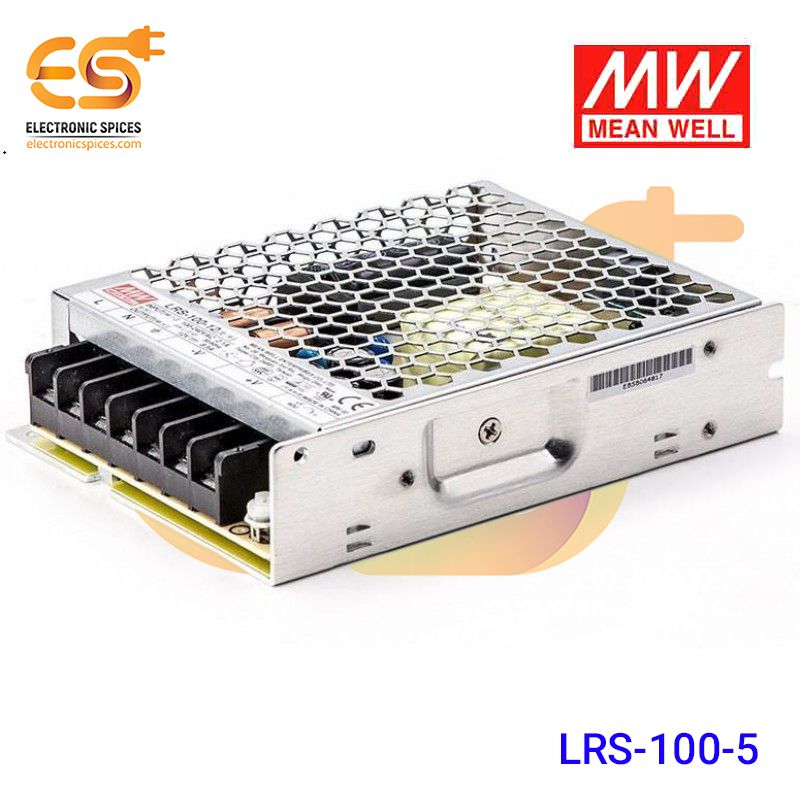

LRS-100-5 Mean Well 5V 18A 90W Metal Power Supply SMPS
The LRS-100-5 by Mean Well is a high-quality 5V DC switch-mode power supply (SMPS), delivering a stable and efficient power output tailored for various industrial and general-purpose applications. This unit provides a maximum current of 18A, resulting in a total power output of 90W. Designed for versatility, the LRS-100-5 operates within a wide AC input range of 85-264V AC or 120-373V DC, making it suitable for global deployment. Its high efficiency, reaching up to 88%, ensures low energy wastage and consistent performance even under continuous operation. The power supply is enclosed in a robust metal casing, relying on natural air convection for cooling, which enhances reliability while maintaining silent operation. Safety features are a priority, with the LRS-100-5 incorporating protections against overload, overvoltage, short circuits, and over-temperature, safeguarding connected devices and the power supply itself.
Features:-
- Compact Design
- Output Power and Voltage
- No load power consumption
- High efficiency, long life and high reliability
