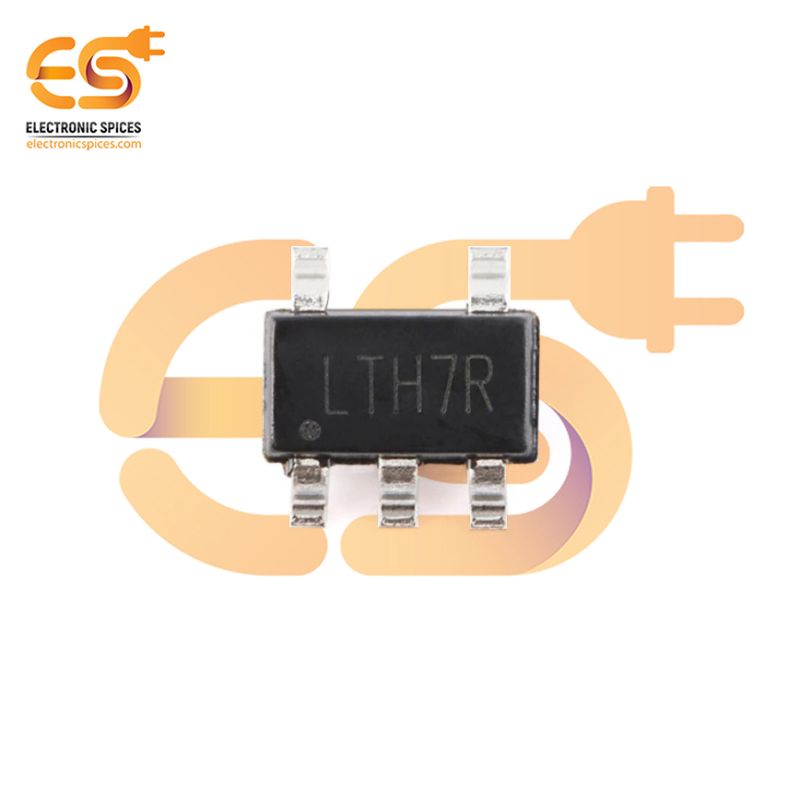

LTH7R Charge and Charge Management IC SOT-23-5

LTH7R Charge and Charge Management IC SOT-23-5

The LTH7R is a compact and highly efficient charge and charge management IC designed for single-cell lithium-ion (Li-ion) and lithium-polymer (Li-Po) battery applications. Housed in a SOT-23-5 package, this integrated circuit offers a range of functionalities aimed at simplifying the design of battery-powered devices while ensuring safe and efficient charging. The LTH7R features an integrated charging circuit that supports constant current and constant voltage charging profiles, which are essential for the proper charging of Li-ion and Li-Po batteries. It has a wide input voltage range, typically supporting 4.5V to 6.5V, making it suitable for various power sources, including USB, AC adapters, and other DC sources. This IC provides several important safety and protection features, such as overvoltage protection, overcurrent protection, and thermal shutdown. These features prevent damage to the battery and the IC, ensuring long-term reliability and user safety. Additionally, the LTH7R offers charge status indicators and can manage charge termination once the battery reaches full charge, effectively preventing overcharging and extending battery life.

Feature:-

• Wide Input Voltage Range
• Charge Status Indicators
• Compact SOT-23-5 package ideal for space-constrained applications.
