- Switch function: SPST
- Contact rating: 100 mAh max.
- Pin space : 2.54mm
- Operating Temperature Range : -40 to 85 °C
- No. of pins : 18
SKU: 7525DV

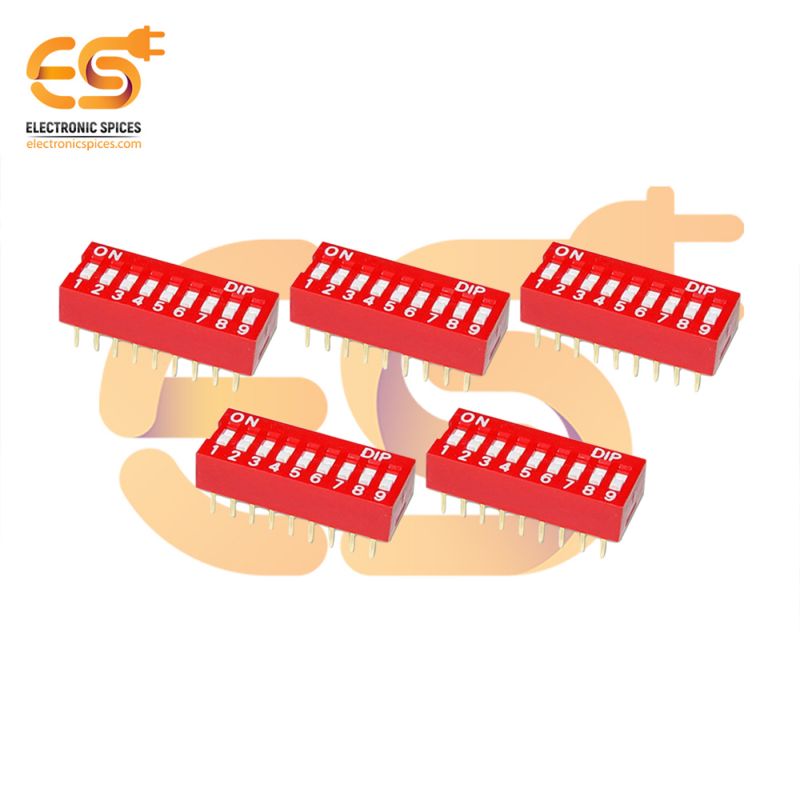

Manual 9 way DIP switch standard profile BD09 pack of 10pcs
A DIP switch is a manual electric switch that packs with others in a group in a standard dual-in-line package(DIP). The term may refer to each individual switch, or to the unit as a whole. This type of switch is designed to be used on a PCB along with other electronic components. It is commonly used to customize the behavior of an electronic device for specific situations. DIP switches are an alternative to jumper blocks. Their main advantage is that they are quicker to change and there are no parts to lose.
Package includes
This is the pack of 10 pieces of Manual 9 way DIP switch standard profiles BD09
Applications
- Address switch for industrial controls
- Logic switching for computers.
- Function controlling for numerous applications
Get Product Suggestions!
AI-Powered Suggestions
Frequently Asked Questions
We offer a wide range of switches including push button switches, toggle switches, momentary switches, self-lock switches, and smart WiFi switch modules. Options come in different sizes (12mm, 16mm, 19mm), colors (blue, green, yellow, white), and indicator lights for versatile applications.
Yes! Our collection includes Mini WiFi Smart Switch Modules that support app and voice control, making them perfect for smart home automation. Additionally, push button and toggle switches are widely used in DIY electronics, robotics, and educational projects.
Yes, these are manual DIP switches that can be toggled by hand or using a small tool.
We offer wardrobe switches in Blackwood, greywood, and whitewood finishes, allowing you to match your furniture or interior design. These switches blend seamlessly into modern and classic setups.
We offer DIP switches in multiple configurations including 2-way, 3-way, 4-way, 5-way, 6-way, 7-way, 8-way, 9-way, 10-way, and 12-way. These are available in packs of 5, 10, or 50 pieces, depending on your project needs.
Yes. Many of our switches come with built‑in LED indicators (blue, green, yellow, white) for Easy status monitoring. These are Especially useful in control panels, machinery, and DIY electronics projects where visibility matters.
We stock nickel‑plated brass push button switches (IP65 rated) and high‑current toggle switches that are suitable for industrial control panels, machinery, and automotive applications. For heavy loads, always check the voltage and current rating before installation.
Consider these factors :
- Type of operation (momentary vs self‑lock)
- Size & mounting hole (12mm, 16mm, 19mm)
- Current & voltage rating (AC 125V 3A, AC 250V 1.5A, etc.)
- Indicator requirement (LED or non‑LED)
- Application (DIY, home automation, industrial use)
Our filters and product Descriptions make it Easy to select the right switch.
. SPST (Single Pole Single Throw): Simple ON/OFF switch.
. SPDT (Single Pole Double Throw): One input, two outputs – used for selecting between two circuits.
DPDT (Double Pole Double Throw) : Controls two separate circuits simultaneously, often used in motor direction control
